ICON Vehicle Dynamics K64502 Features:

This 4.5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The Dual-Rate front coil springs combined with our ICON 2.5 Aluminum Series piggyback reservoir shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and U-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
• APPLICATION NOTE #28: PINCH WELD ON ‘05-’10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 65000 - 05-UP FSD DUAL STABILIZER KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
• Dual Rate Coil Springs: Yes
• Shocks Included: Yes
• 100% bolt-on system - no drilling,cutting or welding necessary for install
• 50% increase in wheel travel
• Less body roll than stock truck
• 4.5" more travel from ride height to front bump stops
• State-of-the-art dual-rate coil spring
• Lifetime guarantee that coil springs won’t sag
• Clears 35" Tall Tires & 37" Tall Tires w/ Minor Trimming
• No change in towing capacity
• No drive shaft modifications needed
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)

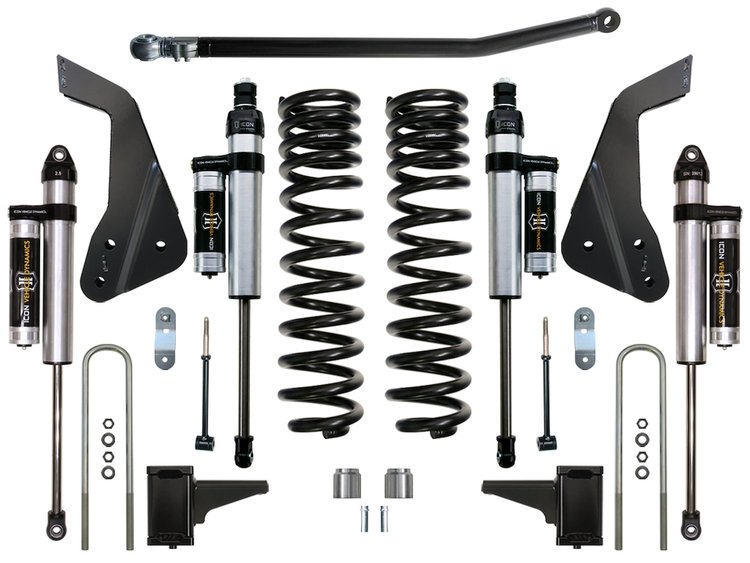

• 2005-2007 FORD F250/F350 4.5" LIFT STAGE 3 SUSPENSION SYSTEM
