ICON Vehicle Dynamics K93065 Features:

The ICON Vehicle Dynamics 2014 Ford F150 4WD Stage 5 suspension system is the best choice for drivers looking to maximize the on and off-road potential of their trucks and will inspire confidence behind the wheel in nearly any situation. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring external remote reservoirs w/ CDCV for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-2.63” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Aluminum Series Piggyback rear shocks w/ CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5" CDC reservoir front and rear shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
• Ships in multiple boxes
• Mounting Hardware Included: Yes
• Spring Material: Steel
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Shocks Included: Yes
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 1.75-2.63" of lift height
• ICON CDCV equipped shocks front and rear for full compression tuneability of your shocks
• Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Bolt-on system - No cutting or welding necessary for install

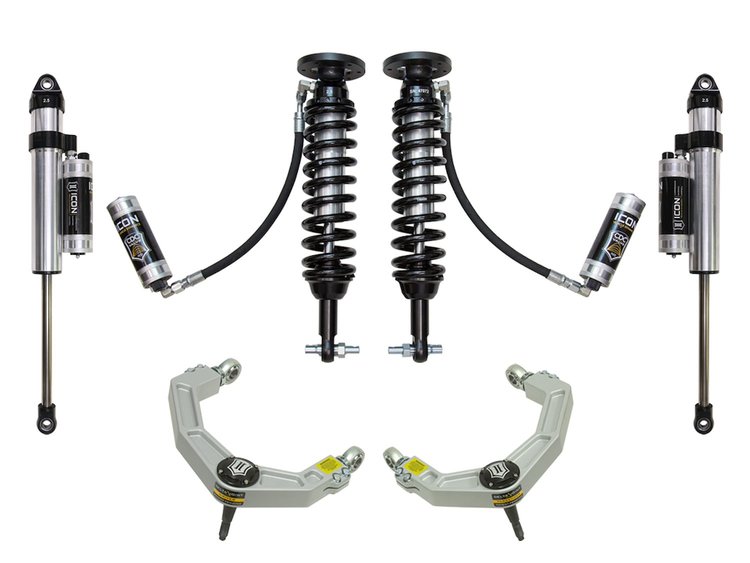

• 2014 FORD F150 4WD 1.75-2.63" LIFT STAGE 5 SUSPENSION SYSTEM WITH BILLET UCA
