ICON Vehicle Dynamics K93114 Features:

ICON Vehicle Dynamics 2021 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range by increasing caster over stock and offering additional caster/camber adjustability. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #129: WILL NOT WORK WITH ELECTRONICALLY CONTROLLED SUSPENSION
• APPLICATION NOTE #130: EQUIPPED WITH DYNAMIC BENDING HEADLAMPS PURCHASE BOX 611071
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: F-150 Tremor front lift height range is 0-1.25" over stock
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• Ships in multiple boxes
• Mounting Hardware Included: Yes
• Spring Material: Steel
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 611071 - DYNAMIC HEADLAMP KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Shocks Included: Yes
• Increased wheel travel and ride quality over stock with no change in towing capacity
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Bolt-on system - No cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 0-2.75" of lift height
• Billet Aluminum Upper Control Arms for added strength, durability, and alignment spec range
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

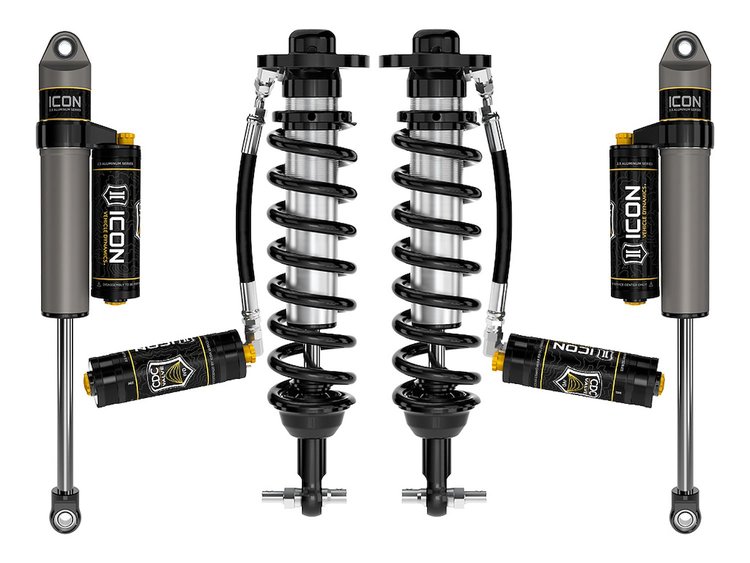

• 2021 FORD F-150 4WD 0-2.75" LIFT STAGE 4 SUSPENSION SYSTEM WITH BILLET UCA
