ICON Vehicle Dynamics K93201 Features:

ICON Vehicle Dynamics 2019-UP Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
• TECH NOTE: 2021-UP ford Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
• Spring Color: Black
• Spring Material: Steel
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Dual Rate Coil Springs: NO
• Shocks Included: Yes
• Height-adjustable coilovers provide a range of 0-3.5” of front lift height
• Fits 2WD & 4WD applications
• Increased lift height allows for fitment of larger and more aggressive tires
• Up to 25% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Corrosion resistant anodized shock body with 5/8? shaft (2.0 Aluminum Series shocks)
• Corrosion resistant CAD plated shock body with 7/8? shaft (2.5 Series shocks)
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and revalvable
• Direct bolt-in design makes for a simple and straightforward installation
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

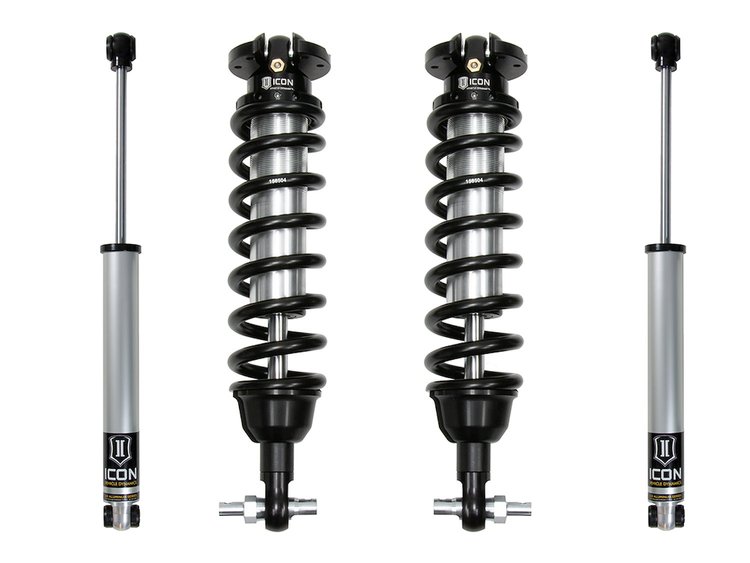

• 2019-UP FORD RANGER 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM
