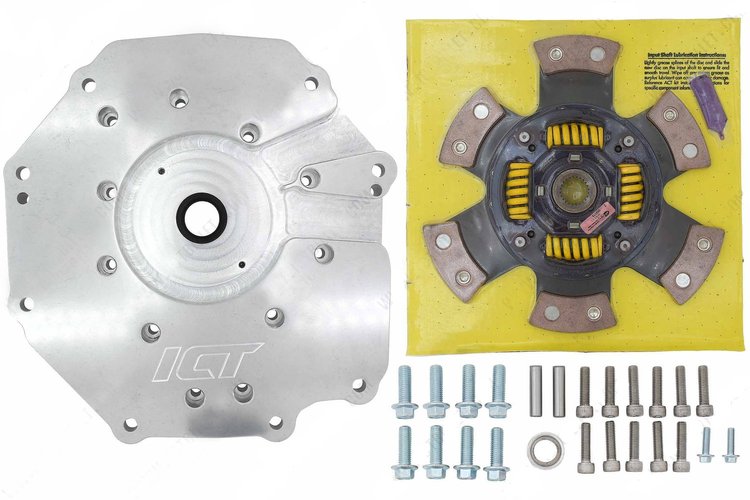

ICT Billet 551001-GEN2A Transmission Bellhousing Adapter Plate Features:

• Allows installation of a Nissan JK Transmission onto a GM LS engine with minimal modification
• Uses all standard GM F-Body LS T56 Flywheel, Pressure Plate, Bellhousing components
• Compatible with 2007-2008 Nissan 350Z/G35 6-speed Transmissions
• Permits transmission and clutch servicing without the removing engine in most applications

ICT Billet 551001-GEN2A Transmission Bellhousing Adapter Plate Notes:

• NOT compatible with Generation 1 CD009 Transmissions from 2003-2006 Nissan 350Z/G35 applications
• To verify Transmission Generation, Measure input shaft bearing OUTSIDE DIAMETER
  • Generation 1: 3.937 in. or 100mm
  • Generation 2B: 3.543 in. or 90mm
• Modification to transmission entails cutting/removing OEM Bellhousing and OEM front bearing cover from transmission to allow adapter plate installation

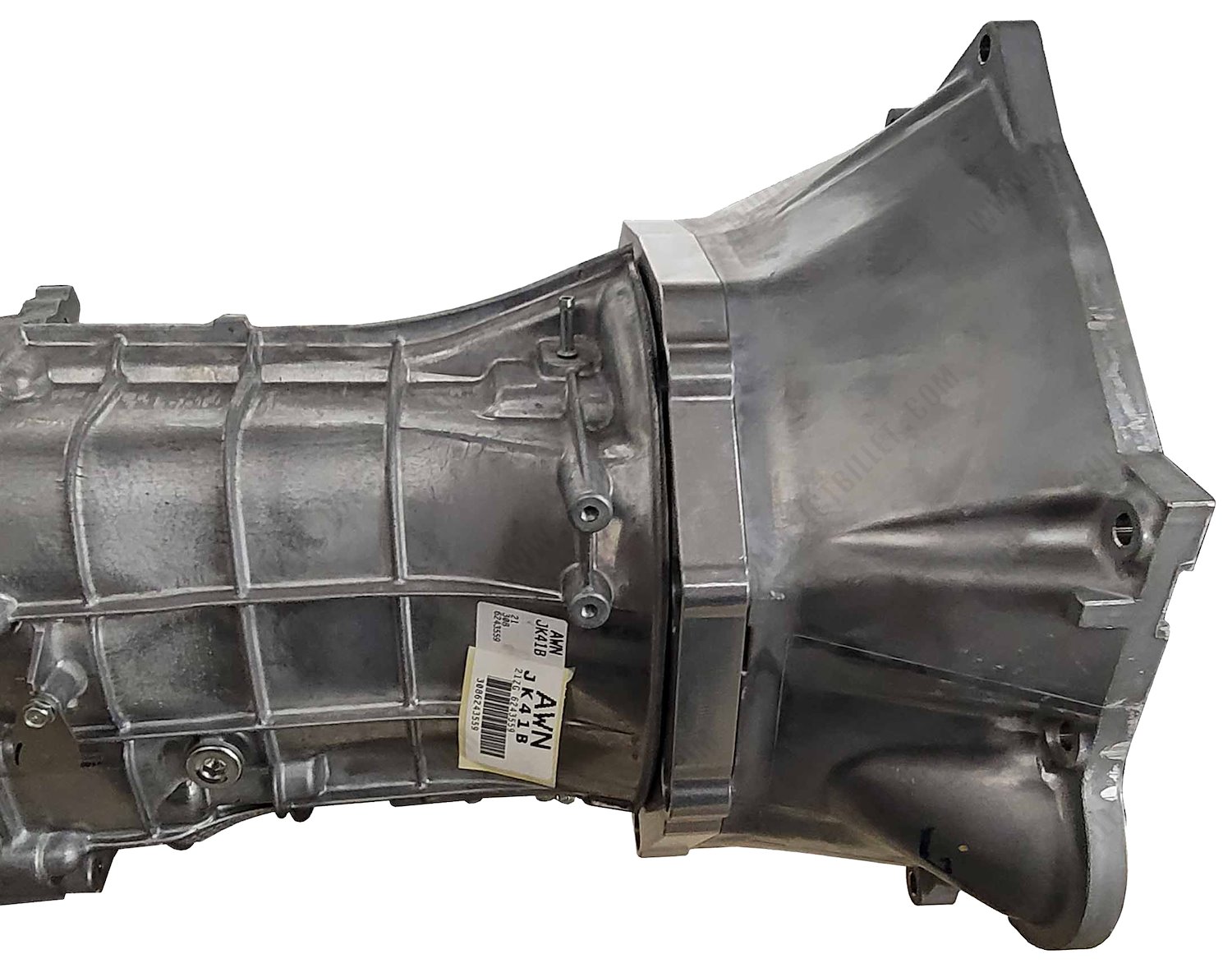

• Adapter plate will take place of front bearing cover on transmission
• Standard T56 Bellhousing will bolt to adapter plate
• Installer must verify bellhousing/adapter plate alignment is within .005 in. during insatllation to prevent bearing side-loading
  • OFFSET DOWELS MAY BE NECESSARY TO ENSURE PROPER ALIGNMENT
  • DOES NOT FIT WITH EXTENDED CRANKSHAFTS
