Features:

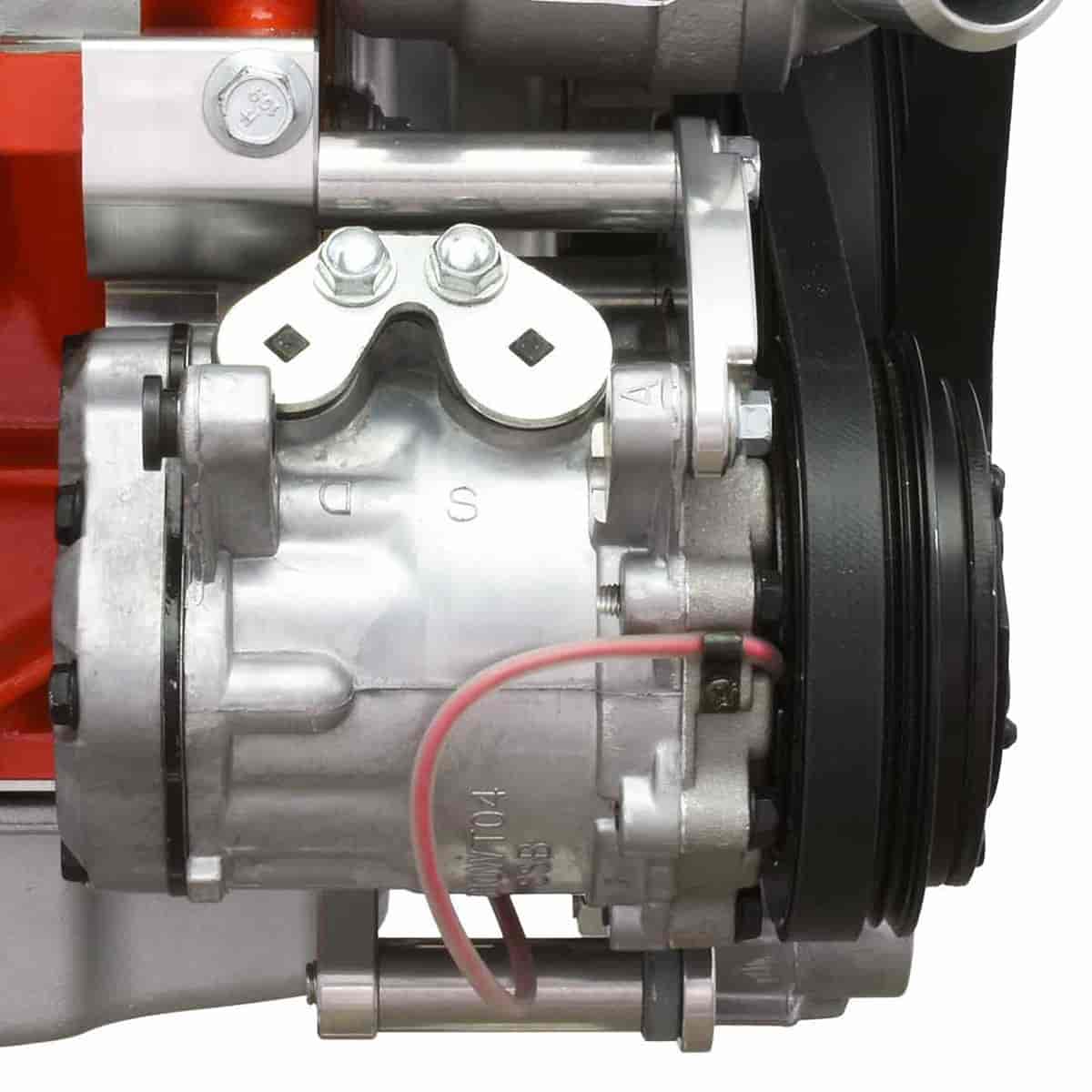

• Mounts a Sanden 7176 compressor low on the passenger side next to the block
• Compatible with GM LS-Series pickup truck, SUV, and 2010-2015 LS3/L99 Chevy Camaro crank pulleys
• Compatible with stock small block Chevy motor mount locations if using this for a LS swap
• Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley

Notes:

• Requires truck or LS3/L99 Camaro spacing water pumps
• This does NOT fit factory style a/c compressors and is only for Sanden 7176 compressors
• Belt length is 37.300 inches
• Fits the following GM engine balancer pulleys: LM7, LR4, LQ4, L59, LQ9, LM4, L33, LH6, L92, L76, LY2, LY5, LY6, LC9, LFA, LH8, LMG, L98, L9H, L20, L94, LZ1, L99, L96, LC8, L77, L99

Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
