High-Mount Alternator Relocation Bracket LS Truck Turbo [For LS3, LS1 Water Pump]
InfoVehicle Info Needed
ICT BILLETPART NUMBER: 335-551587-LS013

High-Mount Alternator Relocation Bracket LS Truck Turbo [For LS3, LS1 Water Pump]

$16500
ShippingShips on 09/17/2026
Lowest PriceLowest Price Guarantee

Alternator Bracket Kits
High-Mount LS Alternator Relocation Bracket Kit
  • GM LS Truck Turbo Engine
  • 105 or 145 Amp Alternators
  • Billet Aluminum
  • Includes Bracket and Mounting Hardware

    Features:

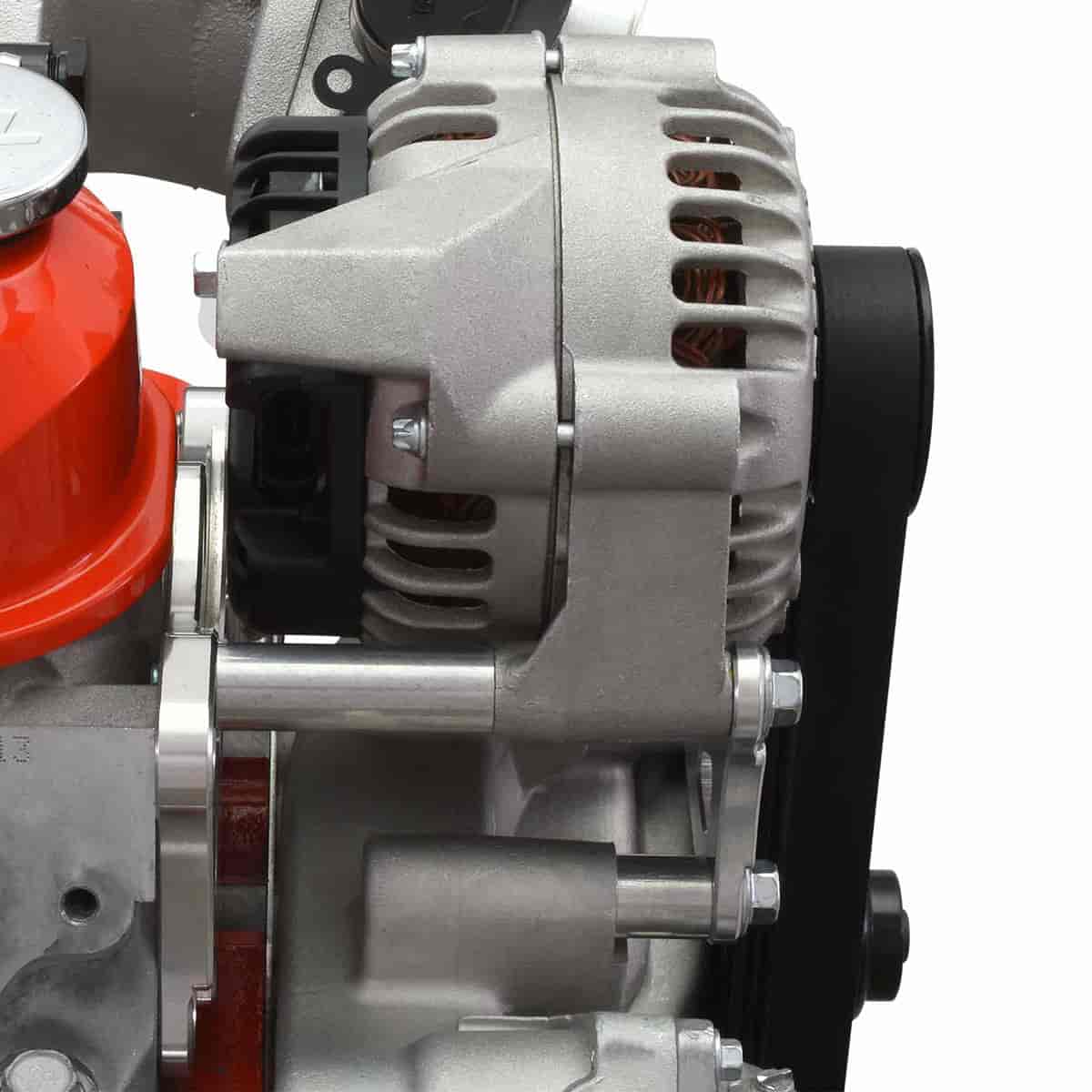

    • This bracket mounts a 105-145 amp LS-Series alternator to the front of the passenger side cylinder head
    • Requires a GM LS-Series Pickup Truck/SUV or 2010-2015 LS3/L99 Chevy Camaro crankshaft pulley
    • Compatible with GM LS-Series Pickup Truck/SUV and 2010-2015 LS3/L99 Chevy Camaro water pumps
    • Compatible with all LS series engines when using the above parts
    • A great idea for turbo applications

    Notes:

    • Not compatible with a Chevy Camaro, Corvette, SS or Cadillac CTS-V or Pontiac G8 large bolt pattern alternator
    • Not compatible with ICT Billet 335-551675 coolant crossover kit

    Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

  • Part TypeAlternator Bracket
    BrandICT BILLET
    Package Height2.0
    Package Width4.0
    Package Length8.0
    Weight1.99 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    QuantitySold individually
    Alternator Mounting PositionPassenger side high mount
    Part FitmentSemi Universal
    Bracket MaterialBillet aluminum
    Vendor Part Number551587-LS01-3
    Package Qty1
    Package TypeEA
