Engine Swap Brackets for LS Series Engine to Small Block Chevy Mounts
InfoVehicle Info Needed
ICT BILLETPART NUMBER: 335-551628

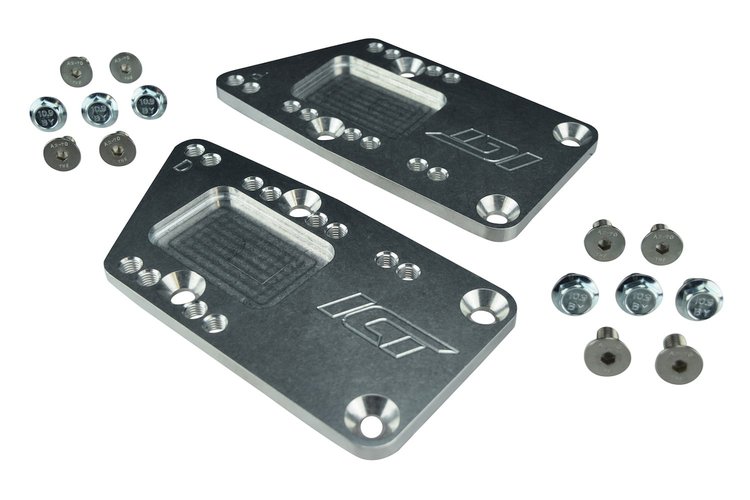

Engine Swap Brackets for LS Series Engine to Small Block Chevy Mounts

$5600
ShippingShips on 11/09/2026
Lowest PriceLowest Price Guarantee
Best Value
Save
$1901
LS Engine Swap Motor-Mount Adapters Billet Aluminum [Adapts Chevy Motor-Mounts to LS-Series Engine]

555-50538

LS Engine Swap Motor-Mount Adapters Billet Aluminum [Adapts Chevy Motor-Mounts to LS-Series Engine]

$3699

SBC to LS Mount Adapters
    Engine Swap Brackets
  • LS Series Engine
  • Adapts Small Block Chevy Mounts
  • Adjustable with 4 Positions
  • Natural Billet Aluminum Finish
  • Includes: (2) Adapter Plates & Hardware

    Adjustable from stock bellhousing position, .625", 1.625" forward, and 2.250" forward

    These brackets allow a LS engine (Gen III/IV) to be bolted into a vehicle that had a Small Block Chevy engine (Gen 1).

    Mounts have the same 3 bolt holes on each side of the block that the factory SBC blocks have for the engine mounts.

    Clam shell motor mounts will require trimming of the front lower corner to clear vacuum pump mount.

    Modern Engine Swap Convenience

    Have an LS or even a Gen V LT-series engine to swap into a project vehicle? ICT Billet makes engine swaps easy with adapter brackets and kits for a simple mounting solution.

Part TypeMotor Mount
Product LineICT Billet Engine Swap Mounts and Kits
BrandICT BILLET
Package Height0.7
Package Width4.6
Package Length10.1
Weight2.25 PG
Part CategoryPerformance Parts
Transmission Mount IncludedNo
Motor Mount StyleBlock mount
QuantitySold as a pair
Part FitmentSemi Universal
Bracket FinishNatural
Bracket MaterialBillet aluminum
Vendor Part Number551628
Package Qty1
Package TypeEA
