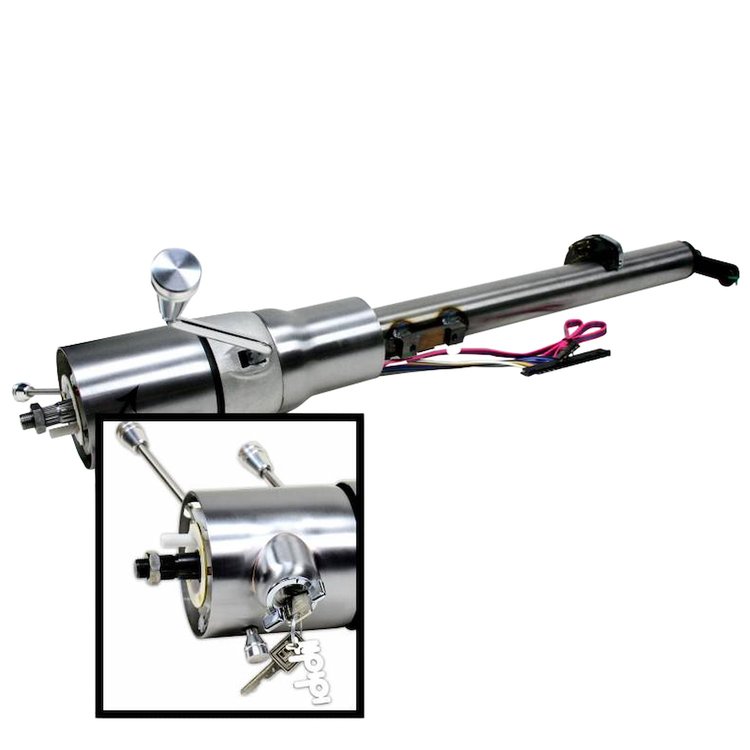

Retrofit Tilt Column Shift Steering Column 1969-72 Chevelle/El Camino/GTO
InfoVehicle Info Needed
IDIDITPART NUMBER: 535-1540690010

Retrofit Tilt Column Shift Steering Column 1969-72 Chevelle/El Camino/GTO

$1,42000
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Steel Universal Joint 1"-48 x 3/4" DD

IDIDIT

Steel Universal Joint 1"-48 x 3/4" DD

Part Number : 535-3000014349
$11000
1" DD x 13/16"-36 Rag Joint 1969-73 Chevelle/Malibu/El Camino & Pontiac GTO

IDIDIT

1" DD x 13/16"-36 Rag Joint 1969-73 Chevelle/Malibu/El Camino & Pontiac GTO

Part Number : 535-3000055240
$15200
Steering Wheel Remover and Lock Plate Tool with Hard Plastic Case

JEGS

Steering Wheel Remover and Lock Plate Tool with Hard Plastic Case

Part Number : 555-W89704
$7099$78.99
You Save$8.00
Rag Joint Steering Coupler [3/4 in.-36 Spline x 1 in. Double-D]

IDIDIT

Rag Joint Steering Coupler [3/4 in.-36 Spline x 1 in. Double-D]

Part Number : 535-3000053452
$15200

1969-72 Chevelle/El Camino/GTO Tilt Column Shift Steering Columns - Key Ignition
    Retrofit Tilt Column Shift Steering Column
  • 1969-72 Chevelle/El Camino/GTO
  • Wiring Plug: 3-7/8"
  • Output Shaft: 1" x 48-Spline
  • Includes Key Ignition
  • Excludes ignition on 1969-70 GTO
  • Paintable Steel

1964-72 Chevelle, El Camino, GTO Retrofit Steering Columns are made for tilt floor or tilt column shift applications. Tilt Column Shift Columns have a neutral safety switch and everything needed to use your original dash indicator. For use with either 3-speed or 4-speed automatic transmissions, unit attaches to the lower shift arm and requires a solid shift linkage for installation. Columns are available in a choice of black powdercoated steel, chrome-plated steel, paintable steel, brushed aluminum, or polished aluminum.

Show More

Features:

  • 8-Position Tilt
  • Self-Canceling Turn Signals
  • 4-Way Flashers
  • Knobs & Levers

    Tilt Floor/Column Shift with Key Ignition: The convenience of an electric internal ignition switch that includes an electric ignition switch, relays, and two coded keys.

    Tilt Floor/Column Shift with Touch-N-Go Start Ignition: Keyless ignition includes a small control box and two programmable key FOBs with an adjustable distance range up to 15 feet.

    Notes

  • Column shift with key ignition and Touch-N-Go will not fit 1964-65 GTO
  • Ignition excluded on 1969-70 GTO

    How to Measure a Steering Column

  •

Part TypeSteering Column
Product LineIdidit 1964-72 Chevelle/El Camino/GTO Retrofit Steering Columns
BrandIDIDIT
Package Height5.5
Package Width11.5
Package Length45.5
Weight20.1 PG
Part CategoryPerformance Parts
TelescopingNo
Column Diameter2 in (50.8 mm)
QuantitySold individually
Gear Indicator IncludedNo
Column MaterialSteel
Neutral Safety Switch IncludedYes
Ignition Key LocationColumn
Hazard SwitchYes
TiltYes
CollapsibleNo
Part FitmentSemi Universal
Turn Signal Switch IncludedYes
Column Lower Output Shaft (In.)1 48-spline
Vendor Part Number1540690010
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
