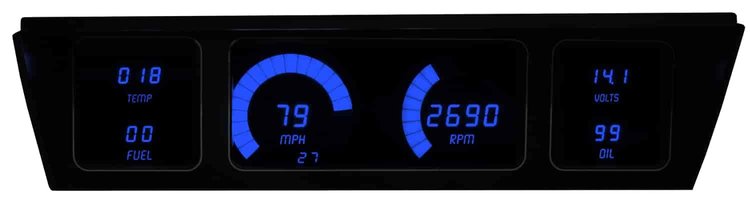

LED Digital Dash Kit 1977-1990 Impala/Caprice - Blue
Items You Need
This LED digital instrument panel replaces the factory pod-style gauges in 1977-1990 Chevy Impala and Caprice models with blue LED readouts. It shows speed to 255 MPH, RPM, water temperature, oil pressure, voltage and fuel level, and includes the speed, temperature and oil pressure senders.
Intellitronix DP1211B LED Digital Gauge Panel Features:
- Fits 1977-1990 Chevy Impala and Caprice
- Speedometer reads to 255 MPH with odometer, trip meter and one-button calibration
- Speedometer records 0-60 time, 1/4-mile elapsed time and high-speed recall
- Programmable tachometer reads 0-9900 RPM in 100 RPM increments
- Water temperature gauge reads 100-300 F
- Oil pressure gauge reads 0-100 PSI
- Voltmeter reads 7.0-25.5 volts with no sending unit required
- Fuel level reads 0-99 percent in 1 percent steps and works with the existing GM sender
- Turn signal and high beam indicators
- Includes direct-fit circuit boards, smoked plexiglass faceplate, S9013 speed sender, S8013 temperature sender and oil pressure sender
Intellitronix DP1211B Installation Notes:
- Fits clusters with separate gauge pods only; does not fit sweep-style gauge clusters
- Bezel not included
- Water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
- GM LS engines require the 8014LS swap kit, sold separately, and send a 4-cylinder tach signal; set the tachometer accordingly
All-Inclusive LED Digital Dashes
Intellitronix LED Direct-Replacement Digital Dash Kits will modernize the interior look of your classic ride. These high-quality gauge panels come complete with everything you need to upgrade from a standard stock dash to a LED-illuminated digital display.
