LED Digital Dash Kit 1977-1990 Impala/Caprice - White
InfoVehicle Info Needed
INTELLITRONIXPART NUMBER: 556-DP1211W

LED Digital Dash Kit 1977-1990 Impala/Caprice - White

$53865
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Automatic Wire Stripper

PAINLESS PERFORMANCE PRODUCTS

Automatic Wire Stripper

Part Number : 764-72030
$1999

Impala/Caprice
LED Digital Gauge Panel
  • 1977-1990 Chevy Impala and Caprice
  • Speedometer, Tachometer, Oil, Water, Volts, Fuel
  • Speed, Oil Pressure and Temperature Senders Included
  • White LED
  • Sold as a Kit

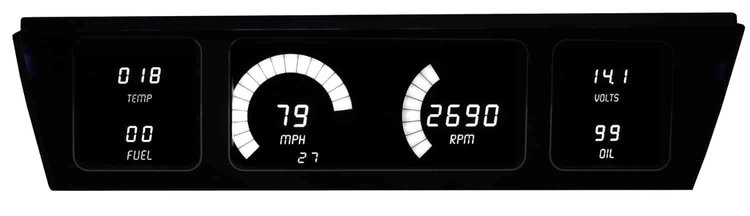

    The direct-fit digital dash for the 1977-1990 Chevy Impala and Caprice uses white LEDs behind a smoked plexiglass faceplate. It fits clusters with separate gauge pods and pairs a 255 MPH speedometer with 0-60 and 1/4-mile recall with a programmable 9900 RPM tachometer.

    Intellitronix DP1211W LED Digital Gauge Panel Features:

    • Fits 1977-1990 Chevy Impala and Caprice
    • Speedometer reads to 255 MPH with odometer, trip meter and one-button calibration
    • Speedometer records 0-60 time, 1/4-mile elapsed time and high-speed recall
    • Programmable tachometer reads 0-9900 RPM in 100 RPM increments
    • Water temperature gauge reads 100-300 F
    • Oil pressure gauge reads 0-100 PSI
    • Voltmeter reads 7.0-25.5 volts with no sending unit required
    • Fuel level reads 0-99 percent in 1 percent steps and works with the existing GM sender
    • Turn signal and high beam indicators
    • Includes direct-fit circuit boards, smoked plexiglass faceplate, S9013 speed sender, S8013 temperature sender and oil pressure sender

    Intellitronix DP1211W Installation Notes:

    • Fits clusters with separate gauge pods only; does not fit sweep-style gauge clusters
    • Bezel not included
    • Water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
    • GM LS engines require the 8014LS swap kit, sold separately, and send a 4-cylinder tach signal; set the tachometer accordingly
    • All-Inclusive LED Digital Dashes

      Intellitronix LED Direct-Replacement Digital Dash Kits will modernize the interior look of your classic ride. These high-quality gauge panels come complete with everything you need to upgrade from a standard stock dash to a LED-illuminated digital display.

    Part TypeInstrument Panel
    Product LineIntellitronix LED Direct Replacement Digital Dash Kits
    BrandINTELLITRONIX
    Package Height5.0
    Package Width8.2
    Package Length20.1
    Weight2.55 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedYes
    Tachometer Range0-9900 RPM
    Bezel IncludedNo
    Led ColorWhite
    QuantitySold as a Kit
    Water Temperature Range100-300 F
    Lighting TypeLED Digital
    Part FitmentDirect Fit
    Gauge TypeSpeedometer, Tachometer, Water Temperature, Oil Pressure, Voltmeter, Fuel Level
    Speedometer Range0-255 MPH
    FaceplateSmoked Plexiglass
    Package Qty1
    Package TypeEA
