LED Digital Dash Kit 1978-1988 Oldsmobile Cutlass - Blue
Items You Need

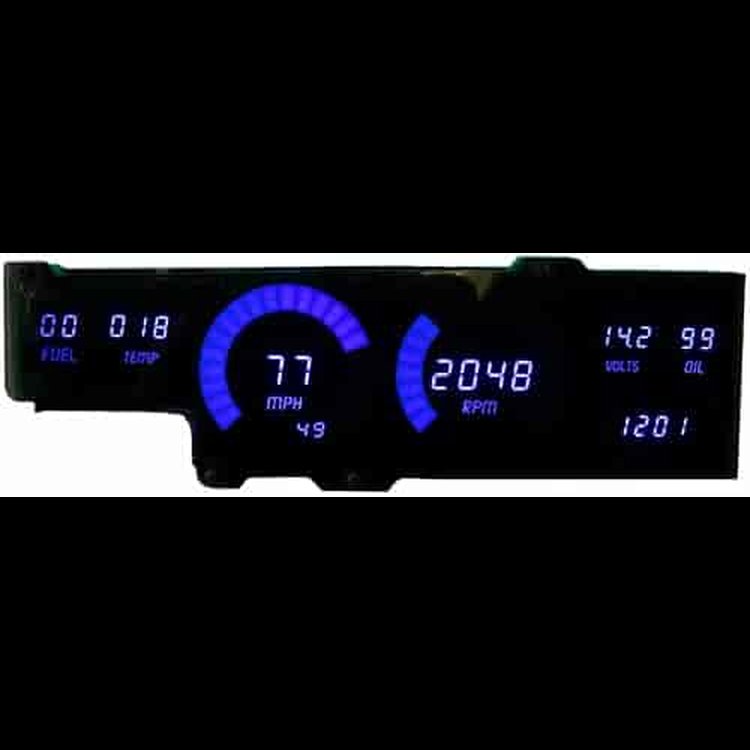

This LED digital gauge panel replaces the factory cluster in the 1978-1988 Oldsmobile Cutlass with a direct-fit circuit board and smoked plexiglass faceplate lit in blue. It reads speed to 255 MPH, engine RPM, water temperature, oil pressure, volts and fuel level.
Intellitronix DP1407B LED Digital Gauge Panel Features:
- Fits 1978-1988 Oldsmobile Cutlass
- Speedometer reads up to 255 MPH with odometer, trip meter and one-button calibration for any tire size, gear ratio or transmission
- 0-60 time, 1/4-mile elapsed time and high-speed recall
- Bargraph tachometer reads 0-9999 RPM in 100, 10 or 1 RPM increments for 1-12 cylinder engines
- Water temperature reads 50-250 F
- Oil pressure reads 0-100 PSI
- Voltmeter reads 7.0-25.5 V, no sender required
- Fuel level programmable for 73-10, 0-90, 10-180 and 240-33 ohm senders
- Clock displays hours and minutes
- Peak RPM memory recall, shift light and 3 amp RPM-activated switch
- Turn signal and high-beam indicators with automatic night dimming
- Includes direct-fit circuit boards, smoked plexiglass faceplate, S9013 speedometer sender, S8013 water temperature sender and oil pressure sender
Intellitronix DP1407B Installation Notes:
- Bezel not included; reuse the factory bezel
- S8013 water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
- Oldsmobile 442 models require a different hardware kit and lens
- Included speedometer sender is for vehicles without electronic transmission or cruise control
All-Inclusive LED Digital Dashes
Intellitronix LED Direct-Replacement Digital Dash Kits will modernize the interior look of your classic ride. These high-quality gauge panels come complete with everything you need to upgrade from a standard stock dash to a LED-illuminated digital display.
