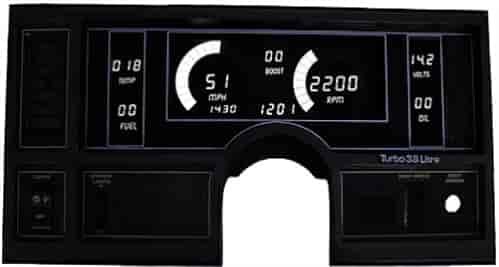

LED Digital Dash Panel Kit 1984-1987 Buick Regal - White
InfoVehicle Info Needed
INTELLITRONIXPART NUMBER: 556-DP1503W

LED Digital Dash Panel Kit 1984-1987 Buick Regal - White

$58619
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Automatic Wire Stripper

PAINLESS PERFORMANCE PRODUCTS

Automatic Wire Stripper

Part Number : 764-72030
$1999

Buick Regal
LED Digital Gauge Panel
  • 1984-1987 Buick Regal
  • Speedometer, Tach, Boost, Oil, Water, Volts, Fuel, Clock
  • Speed, Oil Pressure and Temperature Senders Included
  • White LED
  • Sold as a Kit

    The white LED gauge panel fits 1984-1987 Buick Regal and Grand National dashes with a peak-recall bargraph tachometer and shift light. Its speedometer calibrates with one button regardless of tire size, gear ratio or transmission.

    Intellitronix DP1503W LED Digital Gauge Panel Features:

    • Fits 1984-1987 Buick Regal
    • Speedometer reads to 255 MPH with odometer, trip meter and one-button calibration
    • Speedometer records 0-60 time, 1/4-mile elapsed time and high-speed recall
    • LED bargraph tachometer reads 0-9999 RPM in 100, 10 or 1 RPM increments with peak RPM recall and shift light
    • Boost gauge reads 0-30 PSI
    • Water temperature gauge reads 50-250 F
    • Oil pressure gauge reads 0-100 PSI
    • Voltmeter reads 7.0-25.5 volts with no sending unit required
    • Fuel gauge programs to 73-10, 0-90, 10-180 or 240-33 ohm senders
    • Clock displays hours and minutes
    • Turn signal and high beam indicators
    • Includes direct-fit circuit boards, smoked plexiglass faceplate, S9013 speed sender, S8013 temperature sender and oil pressure sender

    Intellitronix DP1503W Installation Notes:

    • Bezel not included
    • Fuel gauge must be programmed to match the ohm range of the fuel sender
    • Water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
    • GM LS engines may require the 8014LS swap kit, sold separately
    • All-Inclusive LED Digital Dashes

      Intellitronix LED Direct-Replacement Digital Dash Kits will modernize the interior look of your classic ride. These high-quality gauge panels come complete with everything you need to upgrade from a standard stock dash to a LED-illuminated digital display.

    Part TypeInstrument Panel
    Product LineIntellitronix LED Direct Replacement Digital Dash Kits
    BrandINTELLITRONIX
    Package Height4.8
    Package Width8.7
    Package Length20.2
    Weight3.65 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedYes
    Tachometer Range0-9999 RPM
    Bezel IncludedNo
    Led ColorWhite
    QuantitySold as a Kit
    Water Temperature Range50-250 F
    Lighting TypeLED Digital and LED Bargraph
    Part FitmentDirect Fit
    Gauge TypeSpeedometer, Tachometer, Water Temperature, Oil Pressure, Voltmeter, Fuel Level, Boost, Clock
    Speedometer Range0-255 MPH
    FaceplateSmoked Plexiglass
    Package Qty1
    Package TypeEA
