Breakdown of Included Items

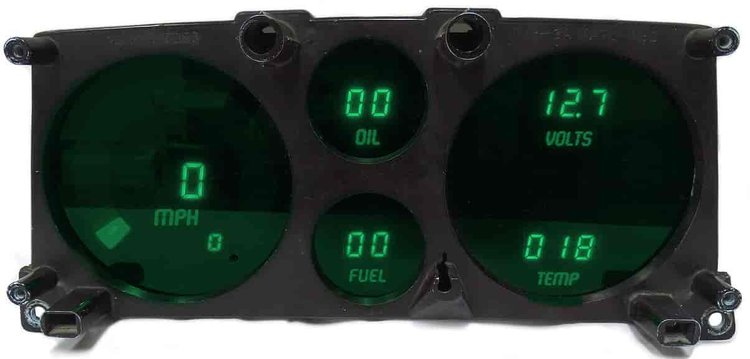

DP1605G Features:

• Fits 1978-1994 Chevy Van

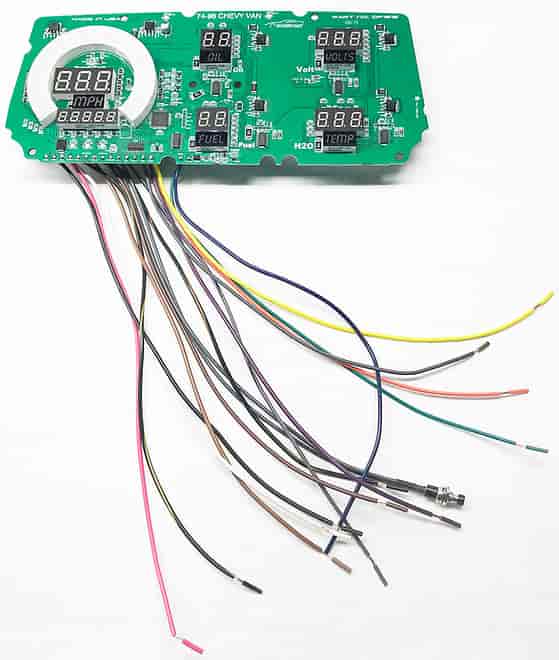

• Direct-fit printed circuit boards
• Green LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units
• Sender and sensor for vehicles without electronic transmission or cruise control
• Installation instructions

Notes:

• Housing/bezel not included
• Clock not included
• Turn signals, high beam, and parking brake must be retained from the original dash

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Can be used with electronic cruise control senders or use with included S9024 universal speedometer sending unit

Tachometer:

• Displays 0-9,900 RPM in 100 RPM increments

Water Temperature:

• Displays 18-250 Degrees F
• Includes S8013 sending unit
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-100 psi
• Includes S8434 oil pressure sending unit

Voltmeter:

• Reads 7.0-25.5 V
• No sending unit required

Fuel Level:

• Reads 0-99 percent in 1 percent increments
• Works with stock GM fuel level sending unit, 0-90 OHM
