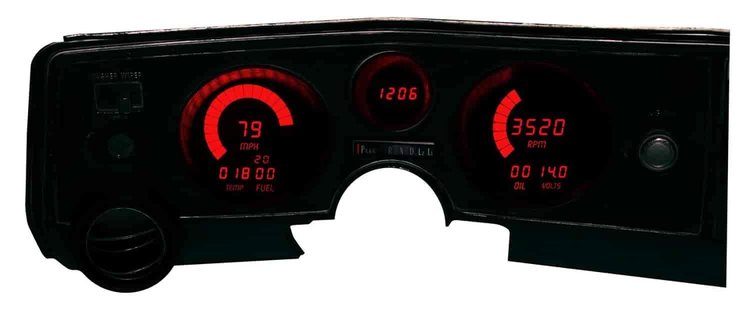

This red LED digital panel is built as a direct replacement for the 1969 Chevy Chevelle cluster and adds an odometer, trip meter, 0-60 and 1/4-mile timing and high-speed recall to the speedometer. One-button calibration works regardless of tire size or gear ratio.

Intellitronix DP5002R LED Digital Gauge Panel Features:

• Fits 1969 Chevy Chevelle
• Speedometer reads up to 255 MPH with odometer and trip meter
• One-button speedometer calibration works regardless of tire size, gear ratio or transmission
• 0-60 time, 1/4-mile elapsed time and high-speed recall
• Bargraph tachometer reads 0-9999 RPM in 100, 10 or 1 RPM increments for 1-12 cylinder engines
• Water temperature reads 50-250 F
• Oil pressure reads 0-100 PSI
• Voltmeter reads 7.0-25.5 V, no sender required
• Fuel level programmable for 73-10, 0-90, 10-180 and 240-33 ohm senders
• Peak RPM memory recall and 3 amp RPM-activated switch
• Turn signal and high-beam indicators with automatic night dimming
• Includes direct-fit circuit boards, smoked plexiglass faceplate, S9013 speedometer sender, S8013 water temperature sender and oil pressure sender

Intellitronix DP5002R Installation Notes:

• Bezel not included; reuse the factory bezel
• S8013 water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
• Included speedometer sender is for vehicles without electronic transmission or cruise control
