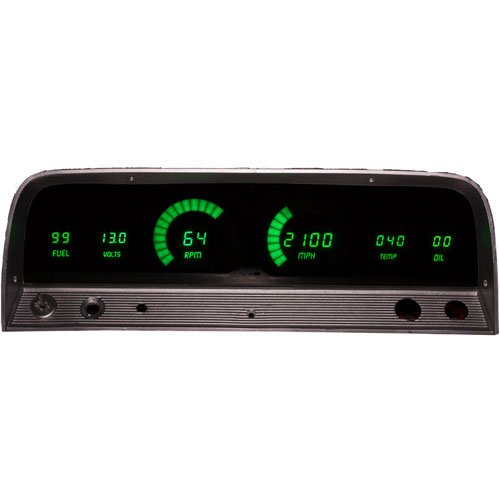

The green LED display on this direct-fit 1964-1966 Chevy truck panel covers speedometer, tachometer to 9900 RPM, water temperature, oil pressure, voltmeter and fuel level. Speedometer, oil pressure and water temperature sending units come with the kit.

Intellitronix DP6002G LED Digital Gauge Panel Features:

• Fits 1964-1966 Chevy Trucks
• Speedometer reads up to 255 MPH with odometer and trip meter
• One-button speedometer calibration works regardless of tire size, gear ratio or transmission
• 0-60 time, 1/4-mile elapsed time and high-speed recall
• Tachometer reads 0-9900 RPM in 100 RPM increments
• Water temperature reads 100-300 F
• Oil pressure reads 0-100 PSI
• Voltmeter reads 7.0-25.5 V, no sender required
• Fuel level reads 0-99% in 1% increments, programmed to the vehicle's sender ohm value
• Turn signal and high-beam indicators
• Includes direct-fit circuit boards, smoked plexiglass faceplate, S9013 speedometer sender, S8013 water temperature sender and oil pressure sender

Intellitronix DP6002G Installation Notes:

• Bezel not included; reuse the factory bezel
• S8013 water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
• Does not fit GMC trucks
• Installing the cluster may disable the cruise control system
• Included speedometer sender is for vehicles without electronic transmission or cruise control
