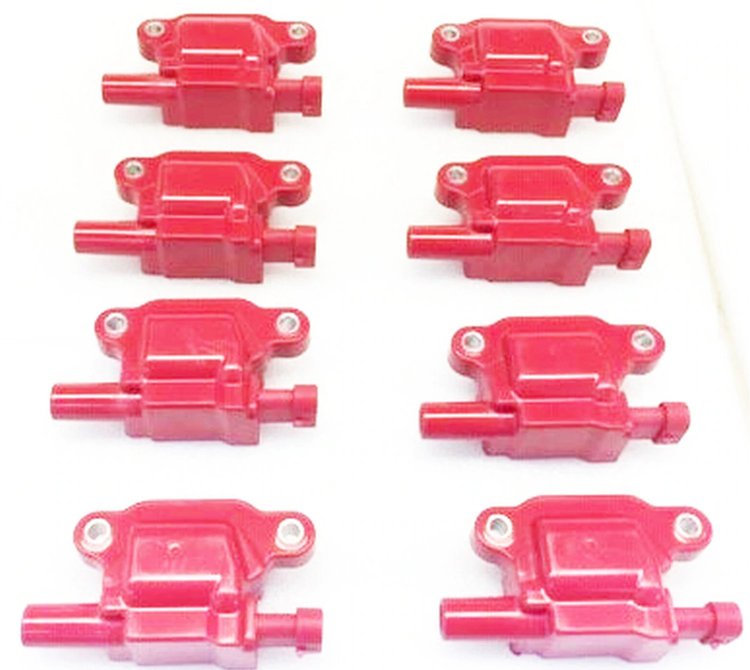

GM LS Ignition Coils High Performance/Racing [Set of 8]
Product Discontinued
INTELLITRONIXPART NUMBER: 556-IGCL001-LS

GM LS Ignition Coils High Performance/Racing [Set of 8]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Items You Need

Nylon Wire and Cable Ties [11 in. Black]

JEGS

Nylon Wire and Cable Ties [11 in. Black]

Part Number : 555-10610
$1099$12.99
You Save$2.00
Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

Part Number : 555-1124
$1799$19.99
You Save$2.00
Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Spark Plug Wire Boot Guards, Black [Set of 8]

JEGS

Spark Plug Wire Boot Guards, Black [Set of 8]

Part Number : 555-40300
$4499$49.99
You Save$5.00

    GM LS Ignition Coils
  • Small Block Chevy Gen III/IV LS2, LS3, LS7
  • 0.500 ohms Primary Resistance
  • 2.00K ohms Secondary Resistance
  • 40,000 V Maximum Voltage
  • 75:1 Turn Ratio
  • 2.70 mH
  • 220 mA Peak Current
  • 300 Us Spark Duration
  • Set of 8

    This set of eight high-performance and racing GM LS Ignition Coils will surpass the output of your OE ignition coils and they easily mount in the factory stock location.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    High-Spark Ignition Coils Increase Performance

    Intelllitronix high-output Ignition Coils for GM LS2, LS3, and LS7 engines are designed to produce higher spark energy for faster rise time and longer spark duration; resulting in more power!

Part TypeIgnition Coil
Product LineIntellitronix LS Ignition Coils
BrandINTELLITRONIX
Package Height7.0
Package Width8.5
Package Length12.0
Weight5.75 PG
Part CategoryPerformance Parts
Primary Resistance0.500 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
QuantitySold as a set of 8
Ballast Resistor IncludedNo
Maximum Voltage40,000 V
Turns Ratio75:01:00
Peak Current220 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance2.70 mH
Coil ColorRed
Coil Wire IncludedNo
Spark Duration300 uS
Secondary Resistance2.00K ohms
Coil Internal ConstructionEpoxy
Package Qty1
Package TypeEA
