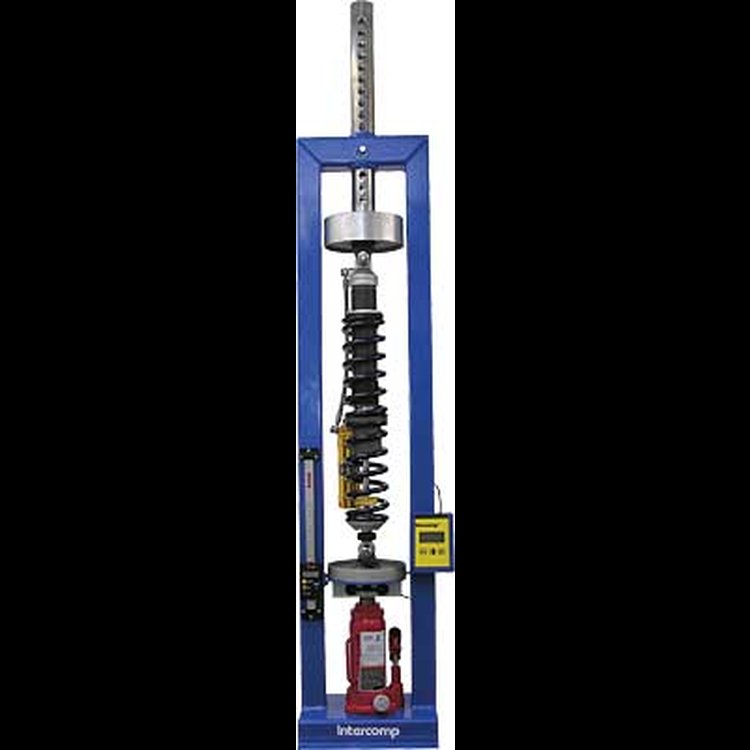

- Digital Coil-Over Spring Tester
- Intercomp's new Digital Coil-Over Spring Tester rates standard and stacked Coil-Over Setups up to 28'' in length! The digital readout displays shock/spring pressures at user defined installed heights and a standard digital travel indicator provides 8'' of travel indication.
This tester offers quick, single pin, vertical height adjustment and has a capacity from 0 to 5,000 lbs. Two shock mounting plates with 1/2'' mounting eyelets are included with optional 5/8'' eyelet shock mounting plates also available. Two shock measuring pins hold the shocks in place along with providing the ability to make eye-to-eye measurements for duplicating installed coil-over shock heights.
Accuracy is ±0.25% and the 0.5'' display reads out in one pound increments. This tester will also rate standard flat or coil-over springs up to 5-1/2'' wide. The unit features a 6'' travel hydraulic jack with a knurled pressure relief knob. Power is provided by a single 9-volt alkaline battery and the tester stands 48-1/2'' high, 10-3/4'' wide and 10-3/4'' deep.
Product LineIntercomp Digital Coil-Over Spring Tester
BrandINTERCOMP
Package Height11.0
Package Width11.0
Package Length50.0
Part CategoryAccessories
Package Qty1
Package TypeEA
