Vehicle Info NeededION WHEELSPART NUMBER: 306-71-6785

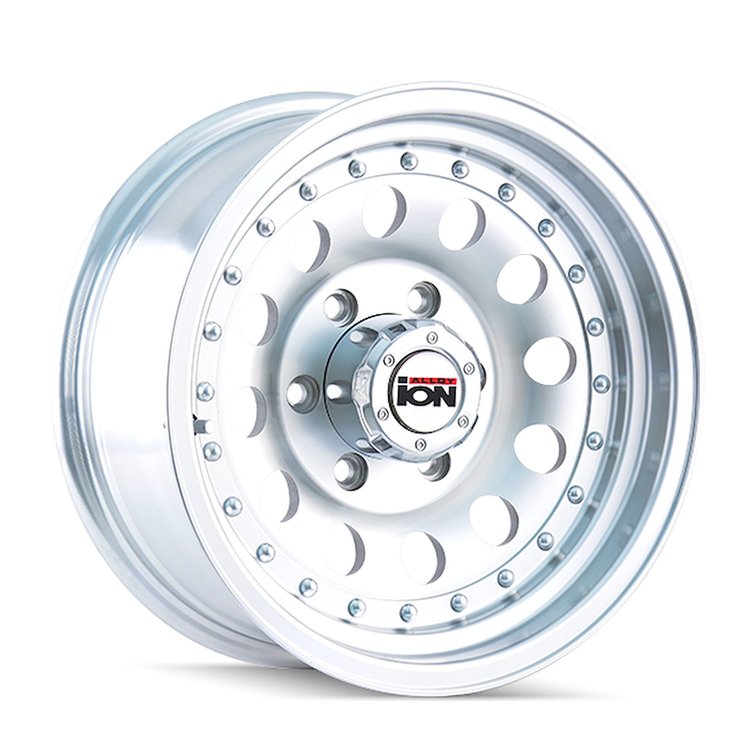

71 Series Trailer Wheel Size: 16" x 7"
$17009$188.99You Save$18.90
Ships on 09/09/2026
Lowest Price Guarantee71 Series Trailer Wheel
16" Diameter
16" Diameter
- 71 Series Trailer Wheel
- Size: 16" x 7"
- Bolt Circle: 5 x 5.5"
- Offset: -8mm
71 (71) MACHINED 16X7 5-139.7 -8MM 107.5MM
Part TypeWheel
BrandION WHEELS
Package Height8.9
Package Width17.9
Package Length18.1
Weight22.47 PG
Part CategoryPerformance Parts
Hub CentricNo
Valve Stems IncludedNo
Lug Nut Seat TypeConical seat - 60 degree
Load Rating (Lbs.)2,200
Quantity1
Primary Wheel ColorSilver
Wheel MaterialCast Aluminum
Wheel FinishMachined
Wheel Construction1-piece
Back Spacing3.688 in (93.675 mm)
Functional BeadlockNo
Bolt Pattern5 x 139.7 mm
Offset-0.315 in.
Beadlock FunctionalNo
Beadlock IncludedNo
Backspacing3.688 in.
Valve Stem IncludedNo
Center Bore Diameter4.232 in.
Wheel Bolt Pattern5 x 139.70 mm
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Load Rating2200 lbs.
Wheel Diameter16 in.
Wheel Offset-8 mm (-.3150 in)
Wheel TypeTrailer Wheels
Part FitmentUniversal
Wheel Width7 in.
Vendor Part Number71-6785
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
