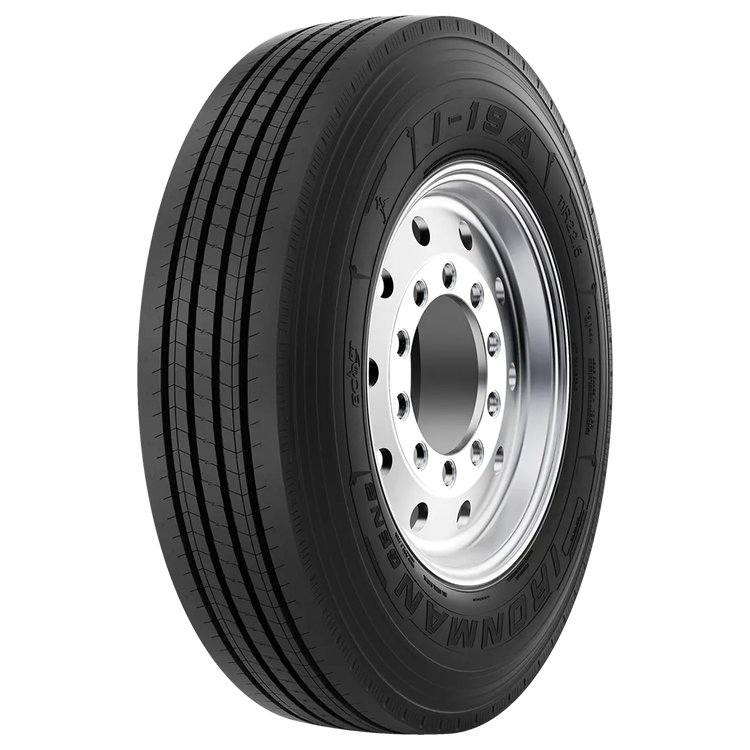

The Ironman GEN 2 I-19A in 295/75R22.5/14 is a all-position radial truck tire for regional and highway steer, drive, or trailer positions in high-scrub and stop-and-go service. Rated at load index 144/141 with a M speed rating and load range G, it is a cost-conscious replacement for fleets and owner-operators that need consistent wear and casing durability. It carries 18.0/32 in. of original tread depth.

Ironman 98625 Technical Specifications:

• Size: 295/75R22.5/14 144/141M
• Load Index: 144/141
• Speed Rating: M
• Load Range: G (14-Ply)
• Max load, single: 6,175 lbs. @ 110 psi
• Max load, dual: 5,675 lbs. @ 110 psi
• Sidewall: Blackwall
• Aspect Ratio: 75
• Section Width: 11.61 in.
• Overall Diameter: 39.90 in.
• Wheel Diameter: 22.5 in.
• Approved rim width: 8.25 in. to 9.00 in.
• Tread Depth: 18.0/32 in.
• Revolutions per mile: 520
• Tire weight: 113.00 lbs.
• Solid shoulder ribs and scrub-resistant compound for long tread life
• Wavy outer grooves with stone ejector platforms protect the belts
• Curb guard protects the sidewall from impact damage
• Wheel not included; sold individually

Replaces the Ironman I-109.
