Made in USA

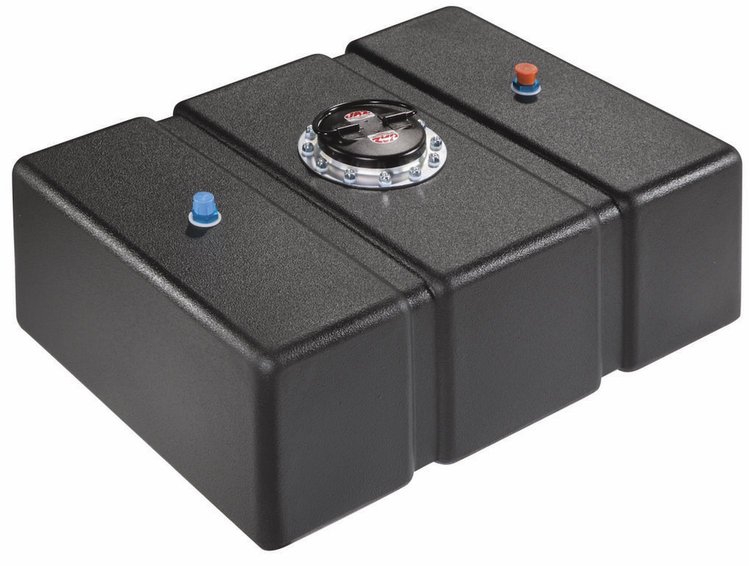

Circle Track Fuel Cell 12-Gallon Black with Foam
InfoVehicle Info Needed
JAZ PRODUCTSPART NUMBER: 547-200-012-01

Circle Track Fuel Cell 12-Gallon Black with Foam

$23999
4 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

12-Gallon
Circle Track Fuel Cell
  • 12-Gallon
  • Black
  • D-Ring Bail Handle Cap Assembly
  • With Safety Foam
  • 17-1/2'' L x 16'' W x 10'' H

    • Seamless rotomolded cross-linked polyethylene outer shell
    • With safety foam
    • Black colored material
    • D-ring bail handle cap assembly
    • One AN-8 fuel pickup fitting
    • Pickup hose routed to right rear corner
    • One AN-8 tip over valve vent fitting
    • 360° mounting strap recesses
    • Use Fuel Cell Mount Kit P/N 547-400-012-03 for installation

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • JAZ Products maintains their own equipment and molds, producing only the highest quality fuel cells. Their Circle Track Fuel Cells are molded in a seamless cross-linked polyethylene outer shell for exceptional quality over the competition. Each circle track fuel cell features a D-ring bail handle cap assembly with check valve vent or IMCA approved fill valve with check valve flapper. Available with or without foam, JAZ only uses the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. Designed specifically for circle track applications, the fuel pickup hose is routed directly to the right rear corner of the cell to maximize fuel pickup. All circle track fuel cells exceed SFI 28.1 and are accepted by most sanctioning organizations.

    Show More

    Features:

    • Seamless cross-linked polyethylene outer shell
    • D-ring bail handle cap assembly or IMCA approved fill valve with check valve flapper
    • Available with or without aviation safety foam
    • One mil spec anodized AN-8 outlet fitting
    • One mil spec anodized AN-8 vent fitting
    • Pickup hose routed to right rear corner
    • 360° mounting strap recesses
    • Black or natural color

    Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)

    Part TypeFuel Cell
    Product LineJAZ Circle Track D-Ring Bail Handle Fuel Cells
    BrandJAZ PRODUCTS
    Package Height10 in (254 mm)
    Package Width16 in (406.4 mm)
    Package Length18.3
    Weight13.05 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedNo
    Outlet Fitting Size-8 AN
    SumpNo
    Fuel Cell ColorBlack
    Vent Fitting Size-8 AN
    QuantitySold individually
    Overall Length17.5 in (444.5 mm)
    Fuel Cell MaterialPlastic
    Outlet Fitting QuantityOne
    FoamYes
    Capacity12 gallons
    Part FitmentUniversal
    Vendor Part Number200-012-01
    Package Qty1
    Package TypeEA
