Made in USA

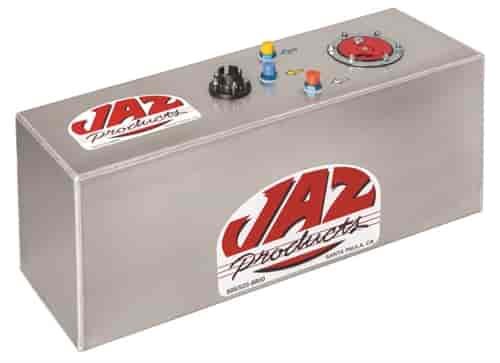

Street Rod Aluminum Fuel Cell 14-Gallon 0-90 ohm with Foam
Product Discontinued
JAZ PRODUCTSPART NUMBER: 547-210-614-03

Street Rod Aluminum Fuel Cell 14-Gallon 0-90 ohm with Foam

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

14-Gallon
    Street Rod Aluminum Fuel Cell
  • 14-Gallon
  • Flush Mount Aircraft-Style Cap Assembly
  • 0-90 ohm Sending Unit
  • With Safety Foam
  • 30" L x 9" W x 12" H

    • 5051 aluminum TIG welded
    • Safety foam filled
    • Aircraft style flush mount assembly
    • One AN-8 fuel pickup w/ hose fitting
    • One AN-8 return fitting
    • One AN-8 tip over valve vent fitting
    • 0-90 ohm sending unit installed

JAZ Products maintains their own equipment and molds, producing only the highest quality fuel cells. Their Aluminum Fuel Cells are constructed from 5051 grade, tig welded aluminum with mounting tabs for exceptional quality over the competition. Each aluminum fuel cell features a flush mounted aircraft-style cap assembly or low pro drag fill cap assembly. Available with foam, JAZ only uses the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. All aluminum fuel cells exceed SFI 28.1 and are accepted by most sanctioning organizations.

Show More

Features:

  • 5051 grade, tig welded aluminum
  • Includes mounting tabs
  • Flush mounted aircraft-style cap assembly or Low pro drag fill cap assembly
  • Aviation safety foam
  • Two AN-8 outlet fittings
  • One AN-8 return fitting
  • One AN-8 vent fitting
  • 28.1 SFI

Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)

Part TypeFuel Cell
Product LineJAZ Aluminum Fuel Cells
BrandJAZ PRODUCTS
Package Height12.25 in (311.15 mm)
Package Width9.5 in (241.3 mm)
Package Length36.0
Weight19.75 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Outlet Fitting Size-8 AN
SumpNo
Fuel Cell ColorNatural
Vent Fitting Size-8 AN
QuantitySold individually
Overall Length30.25 in (768.4 mm)
Fuel Cell MaterialAluminum
Outlet Fitting QuantityOne
FoamNo
Return Fitting Size-8 AN
Capacity14 gallons
Sender Ohm Range0 ohms empty, 90 ohms full
Part FitmentUniversal
Vendor Part Number210-614-03
Package Qty1
Package TypeEA
