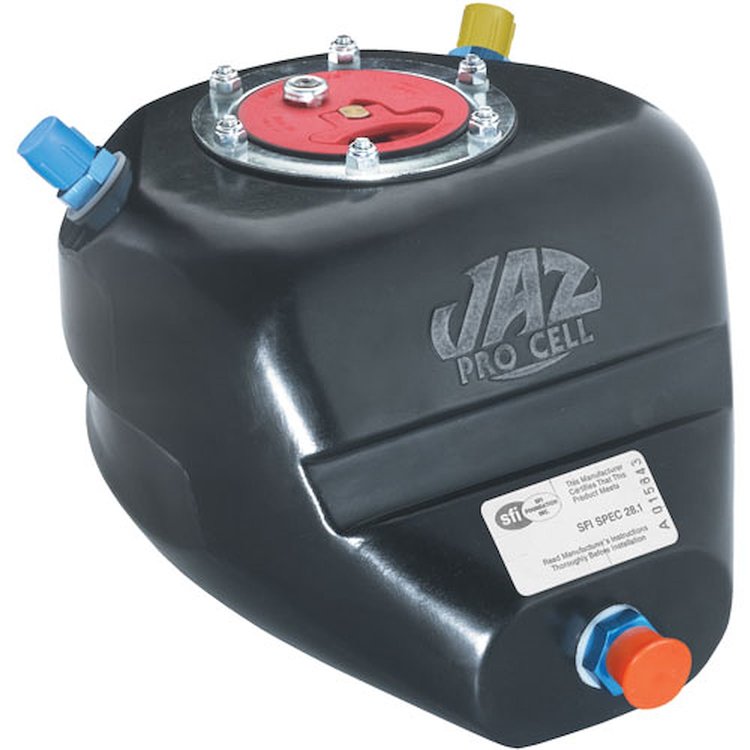

Drag Race Fuel Cell Pro Stock II 1.5-Gallon Black without Foam
InfoVehicle Info Needed
JAZ PRODUCTSPART NUMBER: 547-220-315-NF

Drag Race Fuel Cell Pro Stock II 1.5-Gallon Black without Foam

$45899
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

1.5-Gallon
Drag Race Fuel Cell
  • Pro Stock II
  • Vertical
  • 1.5-Gallon
  • Black
  • Without Safety Foam
  • 10" L x 10" W x 7.5" D

    Features:

    • Seamless cross-linked polyethylene outer shell
    • Without safety foam
    • Black colored material
    • Aircraft style flush mount cap assembly
    • One AN-10 fast flow outlet fitting in the sump
    • One AN-8 return fitting with anti-aeration tube
    • One AN-8 tip over valve vent fitting

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • JAZ Products maintains their own equipment and molds, producing only the highest quality fuel cells. Their Pro Stock Fuel Cells are molded in a seamless cross-linked polyethylene outer shell for exceptional quality over the competition. Each pro stock fuel cell features a one-way flapper valve vent in the cap assembly which allows air to escape the fuel as it is used, and closes if in the event of a rollover. Available with or without foam, JAZ only uses the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. All pro stock fuel cells are SFI 28.1 certified and carry proper SFI-certification label.

    Show More

    Features:

    • Molded in seamless cross-linked polyethylene outer shell
    • Flush mount aircraft style cap assembly
    • One AN-8 return fitting with anti-aeration tube
    • One AN-10 fast flow fitting in sump
    • One AN-8 tip over valve vent fitting
    • Available with or without aviation safety foam
    • Black or natural color material
    • SFI 28.1 certified with proper label

    Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)

    Part TypeFuel Cell
    Product LineJAZ Pro Stock Fuel Cells
    BrandJAZ PRODUCTS
    Package Height7.5 in (190.5 mm)
    Package Width10 in (254 mm)
    Package Length18.4
    Weight4.55 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedNo
    Outlet Fitting Size-10 AN
    Tip Over Valve Size-8 AN
    SumpNo
    Fuel Cell ColorBlack
    QuantitySold individually
    Overall Length10 in (254 mm)
    Fuel Cell MaterialPlastic
    Outlet Fitting QuantityOne
    FoamNo
    Return Fitting Size-8 AN
    Capacity1.5 gallons
    Part FitmentUniversal
    Vendor Part Number220-315-NF
    Package Qty1
    Package TypeEA
