Vehicle Info NeededJAZ PRODUCTSPART NUMBER: 547-230-050-01

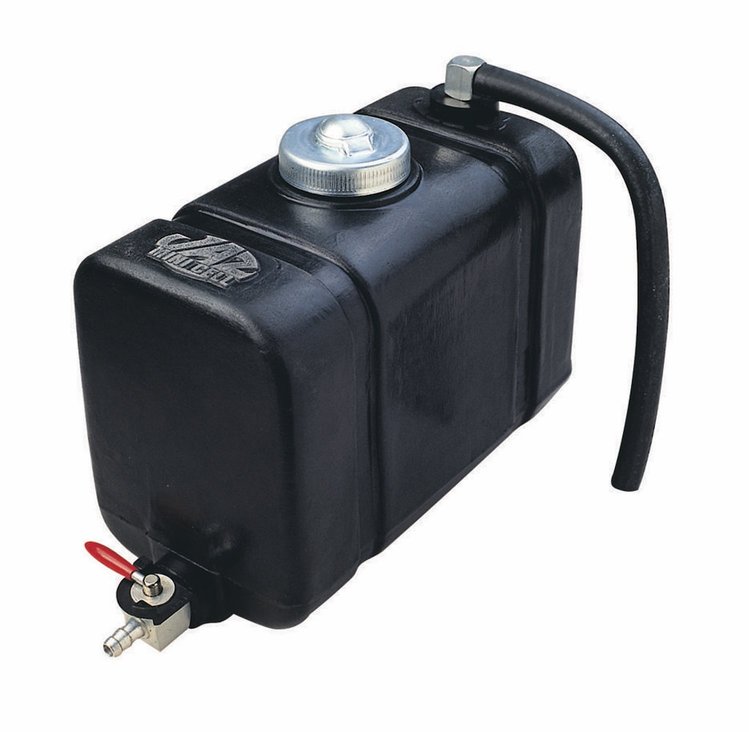

Jr. Dragster Fuel Cell 2-Quart Black with Foam
$10899
Ships Tomorrow
Lowest Price Guarantee2-Quart
- Jr. Dragster Fuel Cell
- 2-Quart
- Black
- Aircraft-Style Flush Mount Cap Assembly
- With Safety Foam
- 7-1/4"L x 4"W x 5-1/2"H
- Seamless rotomolded cross-linked polyethylene outer shell
- With safety foam
- Aircraft style flush mount cap assembly
- 1/4" nipple lever handle petcock outlet fitting
- 1/4" nipple vent fitting in the top
- 360° mounting strap recesses
- NHRA accepted
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
JAZ Products maintains their own equipment and molds, producing only the highest quality fuel cells. Their Jr. Dragster Fuel Cells are molded in a seamless cross-linked polyethylene outer shell for exceptional quality over the competition. Each Jr. dragster fuel cell is available with or without only the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. All Jr. dragster race fuel cells are NHRA accepted.
Show More
Features:
- Seamless cross-linked polyethylene outer shell
- Available with or without aviation safety foam
- 1/4" nipple lever handle petcock outlet fitting
- 1/4" nipple vent fitting in the top
- NHRA accepted
- 1-gallon fuel cells feature flush mount aircraft-style cap assembly
- 2-quart and 1-gallon fuel cells feature 360° mounting strap recesses
- 1-quart fuel cells feature Twist lock cap with check valve vent and molded-in 1/4"-20 mounting inserts
Part TypeFuel Cell
Product LineJAZ Jr. Dragster Fuel Cells
BrandJAZ PRODUCTS
Package Height5.5 in (139.7 mm)
Package Width4 in (101.6 mm)
Package Length12.2
Weight1.81 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
SumpNo
Fuel Cell ColorBlack
Vent Fitting Size1/4 nipple
QuantitySold individually
Overall Length7.25 in (184.2 mm)
Fuel Cell MaterialPlastic
Outlet Fitting QuantityOne
FoamYes
Capacity2 quarts
Outlet Fitting Size (In.).250 petcock
Part FitmentUniversal
Vendor Part Number230-050-01
Package Qty1
Package TypeEA
