Vehicle Info NeededJAZ PRODUCTSPART NUMBER: 547-240-203-05

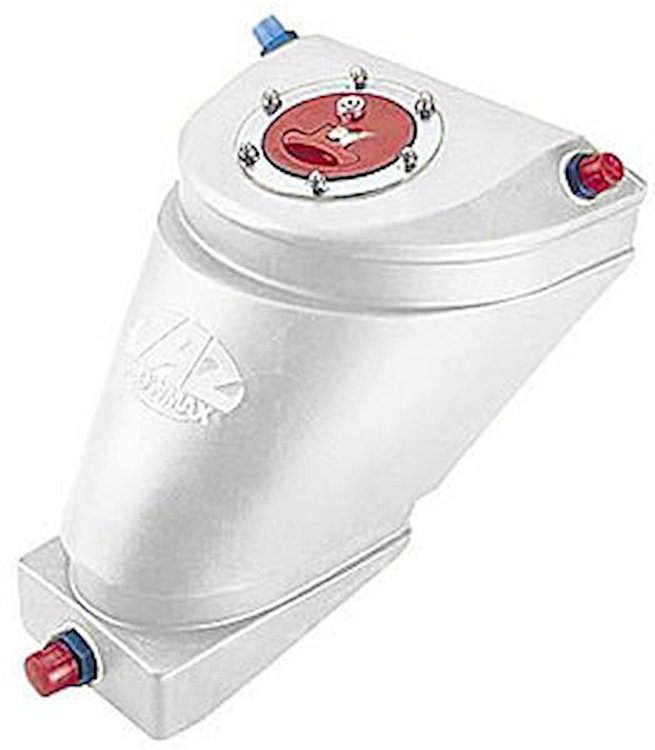

SFI-Certified Drag Race Fuel Cell Flow Max Vertical 3-Gallon Natural with Foam
$61599
Ships on 09/15/2026
Lowest Price Guarantee3-Gallon
SFI-Certified Drag Race Fuel CellFlow Max Vertical 3-Gallon Natural With Safety Foam 11" L x 13.5" W x 13.5" D
Features:
- Seamless cross-linked polyethylene outer shell
- With safety foam
- Natural colored material
- Aircraft style flush mount cap assembly
- One AN-10 fast flow outlet fitting in the sump
- One AN-8 return fitting with anti-aeration tube
- One AN-8 tip over valve vent fitting
- This fuel cell carries SFI certification
- Use Fuel Cell Mount Kit P/N 547-400-203-03 for application
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeFuel Cell
BrandJAZ PRODUCTS
Package Height13.5 in (342.9 mm)
Package Width13.5 in (342.9 mm)
Package Length18.4
Weight5.85 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Outlet Fitting Size-10 AN
SumpYes
Fuel Cell ColorNatural
Vent Fitting Size-8 AN
QuantitySold individually
Overall Length11 in (279.4 mm)
Fuel Cell MaterialPlastic
Outlet Fitting QuantityOne
Sump Depth2 in (50.8 mm)
FoamYes
Return Fitting Size-8 AN
Capacity3 gallons
Part FitmentUniversal
Vendor Part Number240-203-05
Package Qty1
Package TypeEA
