Vehicle Info NeededJAZ PRODUCTSPART NUMBER: 547-254-116-01

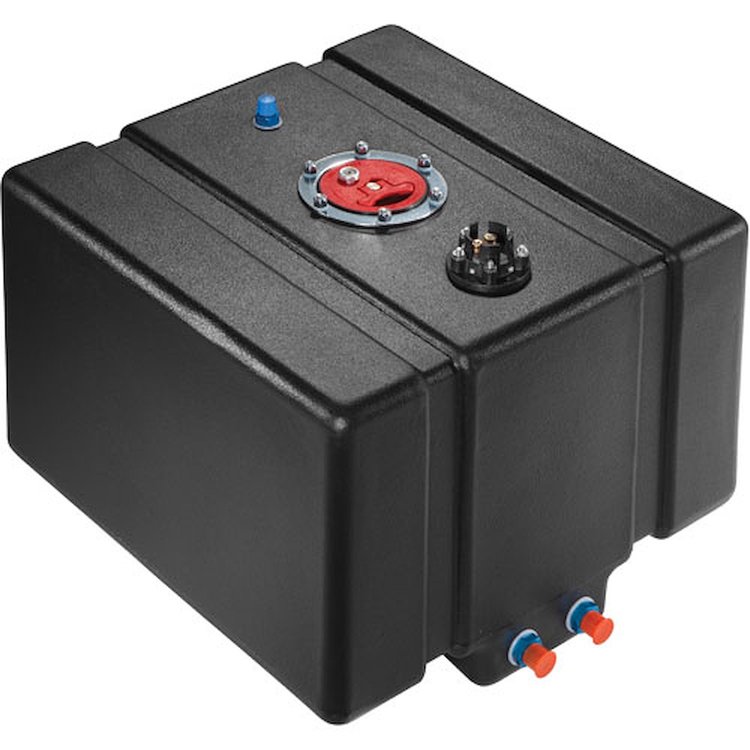

Pro Street Fuel Cell 16-Gallon 70-10 ohm Fuel Level Sender without Foam
$31699
Ships on 09/15/2026
Lowest Price Guarantee16-Gallon70-10 ohm
Pro Street Fuel Cell16-Gallon Black Aircraft-Style Flush Mount Cap Assembly 70-10 ohm Fuel Level Sender Without Safety Foam 18.5'' L x 18.5'' W x 12'' H
- Seamless rotomolded cross-linked polyethylene outer shell
- Without safety foam
- Aircraft style flush mount cap assembly
- 70-10 ohm sending unit
- Two-inch deep sump in the rear for better fuel pickup
- Two AN-8 fast flow outlet fittings in the sump
- One AN-6 vent fitting
- 360° mounting strap recesses
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeFuel Cell
BrandJAZ PRODUCTS
Package Height12 in (304.8 mm)
Package Width18.5 in (469.9 mm)
Package Length20.4
Weight15.28 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Outlet Fitting Size-8 AN
SumpYes
Fuel Cell ColorBlack
Vent Fitting Size-6 AN
QuantitySold individually
Overall Length18.5 in (469.9 mm)
Fuel Cell MaterialPlastic
Outlet Fitting QuantityTwo
Sump Depth2 in (50.8 mm)
FoamNo
Capacity16 gallons
Sender Ohm Range70 ohms empty, 10 ohms full
Part FitmentUniversal
Vendor Part Number254-116-01
Package Qty1
Package TypeEA
