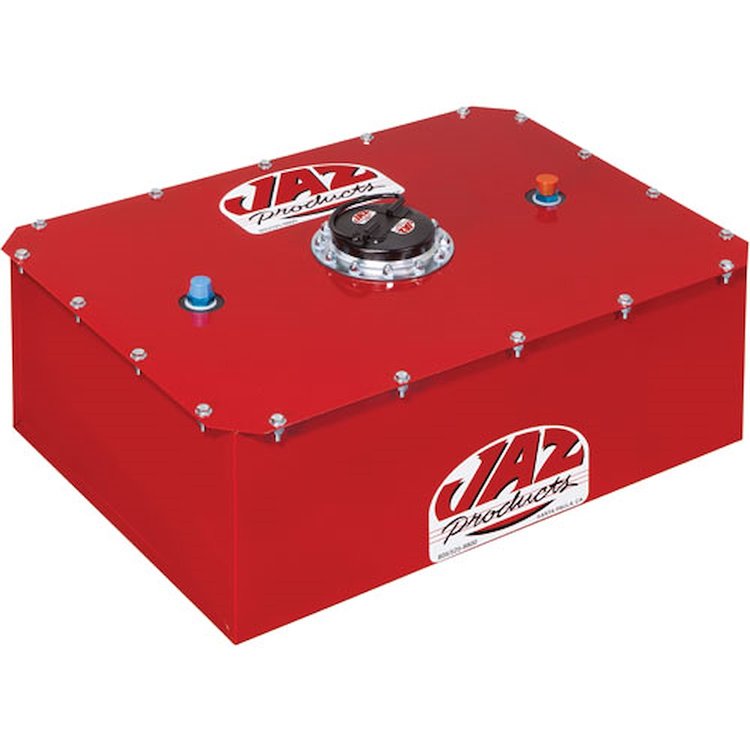

Pro Sport Fuel Cell 16-Gallon without Foam
InfoVehicle Info Needed
JAZ PRODUCTSPART NUMBER: 547-270-016-NF

Pro Sport Fuel Cell 16-Gallon without Foam

$36315
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Fuel Stabilizer 15oz Bottle

LUCAS OIL

Fuel Stabilizer 15oz Bottle

Part Number : 639-10302
$1043$11.28
You Save$0.85

16-Gallon
    Pro Sport Fuel Cell
  • 16-Gallon
  • Red Powder Coat
  • D-Ring Bail Handle Cap Assembly
  • Without Safety Foam
  • Without Roll Over Valve Flapper
  • 26'' L x 18'' W x 10" H

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

JAZ Products maintains their own equipment and molds, producing only the highest quality fuels cells. Their Pro Sport Fuel Cells come equipped with a D-ring bail handle cap assembly for easy removal when refilling. These fuel cells are molded in a seamless cross-linked polyethylene inner shell and have a 20-gauge welded steel container outer shell that is powder coated red or black. Each pro sport fuel cell is available with or without a one-way flapper valve vent in the cap assembly which allows air to escape the fuel as it is used, and closes if in the event of a rollover. JAZ only uses the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. All pro sport fuel cells exceed SFI 28.1 and are accepted by most sanctioning organizations.

Show More

 Features:

  • Seamless cross-linked polyethylene inner shell
  • 20-gauge welded steel container, powdercoated red or black
  • D-ring bail handle cap assembly
  • Available with or without roll over valve flapper assembly
  • Available with or without aviation safety foam
  • Mil spec anodized AN-8 fuel pickup fitting
  • Mil spec anodized AN-8 tip over vent fitting
  • Pickup hose routed to right rear corner

Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)

Part TypeFuel Cell
Product LineJAZ Pro Sport D-Ring Cap Fuel Cells
BrandJAZ PRODUCTS
Package Height14.0
Package Width21.0
Package Length31.5
Weight35.0 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Outlet Fitting Size-8 AN
SumpNo
Fuel Cell ColorRed powdercoated
Vent Fitting Size-8 AN
QuantitySold individually
Overall Length26 in (660.4 mm)
Fuel Cell MaterialSteel with plastic bladder
Outlet Fitting QuantityOne
FoamNo
Capacity16 gallons
Product Height10 in (254 mm)
Part FitmentUniversal
Product Width18 in (457.2 mm)
Vendor Part Number270-016-NF
Package Qty1
Package TypeEA
