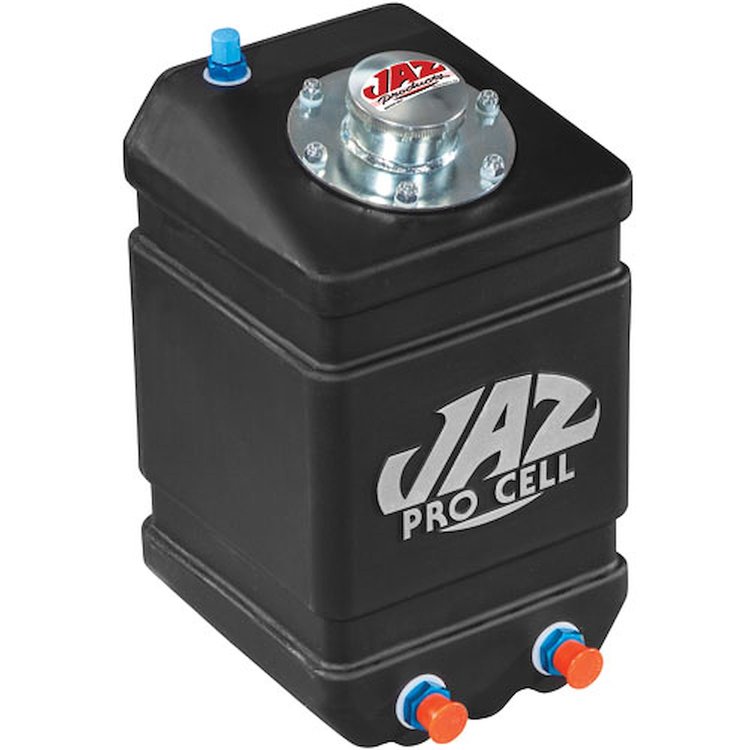

Drag Race Fuel Cell 3-Gallon Vertical Black without Foam
InfoVehicle Info Needed
JAZ PRODUCTSPART NUMBER: 547-290-003-NF

Drag Race Fuel Cell 3-Gallon Vertical Black without Foam

$16799
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Fuel Stabilizer 15oz Bottle

LUCAS OIL

Fuel Stabilizer 15oz Bottle

Part Number : 639-10302
$1043$11.28
You Save$0.85

3-Gallon Vertical Fuel Cells
Drag Race Fuel Cell
  • 3-Gallon
  • Vertical
  • Black
  • Low Pro Fill Cap Assembly
  • Without Safety Foam
  • 8-1/4"L x 8-1/4"W x 14-1/2"H

    • Seamless cross-linked polyethylene outer shell
    • Without safety foam
    • Black
    • Low pro drag fill, 1-3/4" high
    • Tapered sump in the rear for better fuel pickup
    • Two AN-8 fast flow outlet fittings in the sump
    • One AN-6 vent fitting
    • 360° mounting strap recesses

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • JAZ Products maintains their own equipment and molds, producing only the highest quality fuel cells. Their Vertical Drag Race Fuel Cells are molded in a seamless cross-linked polyethylene outer shell for exceptional quality over the competition. Each vertical fuel cell features a one-way flapper valve vent in the cap assembly which allows air to escape the fuel as it is used, and closes if in the event of a rollover. Available with or without foam, JAZ only uses the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. All vertical drag race fuel cells exceed SFI 28.1 and are accepted by most sanctioning organizations.

    Show More

    Features:

    • Molded in seamless cross-linked polyethylene outer shell
    • Flush mount aircraft style cap assembly
    • Available with or without aviation safety foam
    • Tappered sump in rear for better fuel pickup
    • Two mill spec anodized AN-8 fast flow outlet fittings in sump
    • One mill spec anodized AN-6 vent fitting
    • 360° mounting strap recesses
    • Black or natural color material
    • SFI 28.1

    Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)

    Part TypeFuel Cell
    Product LineJAZ Vertical Drag Race Fuel Cells
    BrandJAZ PRODUCTS
    Package Height12.2
    Package Width13.6
    Package Length14.6
    Weight5.74 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part Number290-003-NF
    Package Qty1
    Package TypeEA
