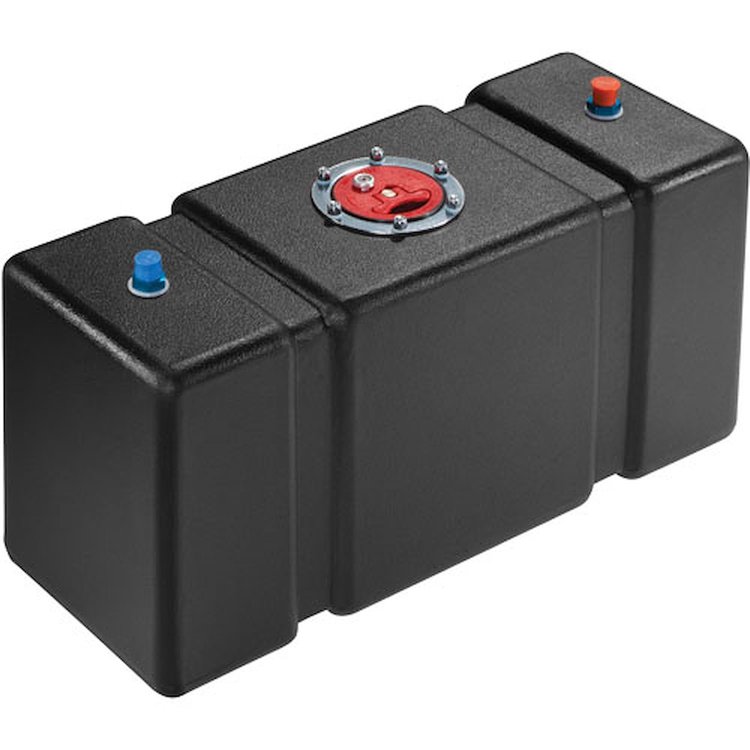

Drag Race Fuel Cell 10-Gallon Street Rod Horizontal Black with Foam
InfoVehicle Info Needed
JAZ PRODUCTSPART NUMBER: 547-290-010-01

Drag Race Fuel Cell 10-Gallon Street Rod Horizontal Black with Foam

$27368
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Fuel Stabilizer 15oz Bottle

LUCAS OIL

Fuel Stabilizer 15oz Bottle

Part Number : 639-10302
$1043$11.28
You Save$0.85

10-Gallon Horizontal Fuel Cells
Drag Race Fuel Cell
  • 10-Gallon
  • Street Rod Horizontal
  • Black
  • Flush Mount Aircraft-Style Cap Assembly
  • With Safety Foam
  • 25 in. L x 9 in. W x 12 in. H

    • Seamless cross-linked polyethylene outer shell
    • With safety foam
    • Black colored material
    • Flush mount aircraft style cap assembly
    • (1) -8 AN fuel pickup fitting with hose
    • (1) -8 AN tip over valve vent fitting
    • 360 degree mounting strap recesses

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • JAZ Horizontal Drag Race Fuel Cells are molded in a seamless cross-linked polyethylene outer shell for exceptional quality over the competition. Each horizontal fuel cell features a one-way flapper valve vent in the cap assembly which allows air to escape the fuel as it is used, and closes if in the event of a rollover. Available with or without foam, JAZ only uses the best safety foam on the market, which has up to a 10 times longer service lifespan than that of other non-fuel approved foams. All horizontal drag race fuel cells exceed SFI 28.1 and are accepted by most sanctioning organizations.

    Show More

    Features:

    • Molded in seamless cross-linked polyethylene outer shell
    • Flush mount aircraft style cap assembly
    • Available with or without aviation safety foam
    • 2 in.deep sump in rear for better fuel pickup
    • Two mill spec anodized -8 AN fast flow outlet fittings in sump
    • One mill spec anodized -6 AN vent fitting
    • 360 degree mounting strap recesses
    • Black or natural color material
    • SFI 28.1 (please see note)

    Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)

    JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

    Part TypeFuel Cell
    Product LineJAZ Horizontal Drag Race Fuel Cells
    BrandJAZ PRODUCTS
    Package Height12.5
    Package Width19.5
    Package Length26.0
    Weight12.515 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedNo
    Outlet Fitting Size-8 AN
    SumpNo
    Fuel Cell ColorBlack
    Vent Fitting Size-8 AN
    QuantitySold individually
    Overall Length25 in (635 mm)
    Fuel Cell MaterialPlastic
    Outlet Fitting QuantityOne
    FoamYes
    Capacity10 gallons
    Product Height12 in (304.8 mm)
    Part FitmentUniversal
    Product Width9 in (228.6 mm)
    Vendor Part Number290-010-01
    Package Qty1
    Package TypeEA
