Small Block Chevy Ultra Light Weight Flat Top
Developed for late model stock, two barrel applications to 400 HP. Full round skirt design. 1/16, 1/16, 3/16'' ring grooves. Shallow valve pockets designed for stock valve size for maximum compression (can be cut larger). Forced pin oiler with annular reservoir. Lightweight JE wristpins (108 grams) and double .042'' spiral locks included.
Specs: Dome vol. -2cc, 424 grams, Compression Ratio: 58cc - 11.6:1; 64cc - 10.8:1; 76cc - 9.4:1. 1.550'' C/H, 5.700'' Rod, 3.500'Stroke. 8/pkg.
Developed for late model stock, two barrel applications to 400 HP. Full round skirt design. 1/16, 1/16, 3/16'' ring grooves. Shallow valve pockets designed for stock valve size for maximum compression (can be cut larger). Forced pin oiler with annular reservoir. Lightweight JE wristpins (108 grams) and double .042'' spiral locks included.
Specs: Dome vol. -2cc, 424 grams, Compression Ratio: 58cc - 11.6:1; 64cc - 10.8:1; 76cc - 9.4:1. 1.550'' C/H, 5.700'' Rod, 3.500'Stroke. 8/pkg.

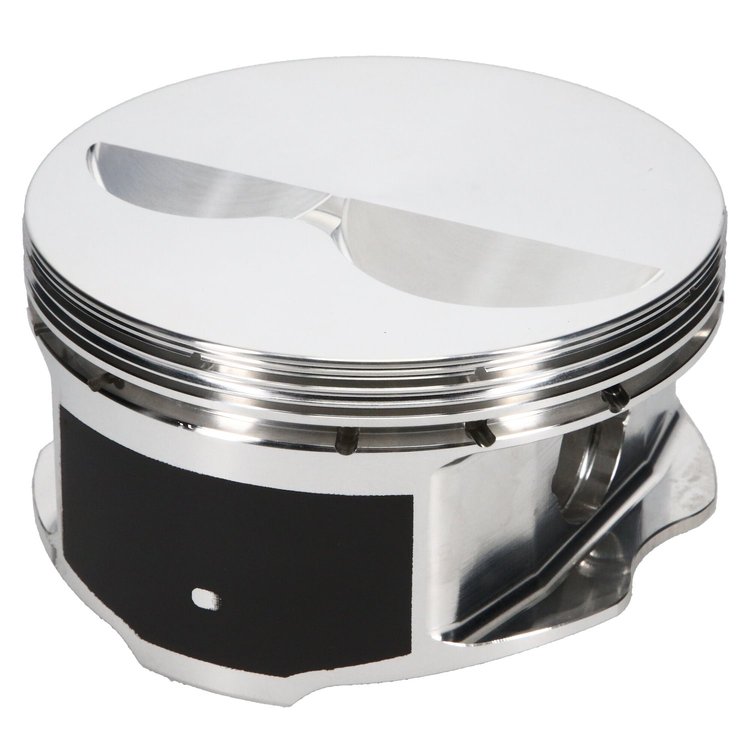

4.030'' Bore For 5.7'' Rod
JE PISTONS 105041 Features:
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.Part TypePiston
BrandJE PISTONS
Package Height6.2
Package Width11.4
Package Length25.3
Weight12.45 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedNo
Compression Height1.55 in (39.37 mm)
Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
Part FitmentSemi Universal
Wrist Pin IncludedNo
ToolStroker Combinations
Vendor Part Number105041
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
