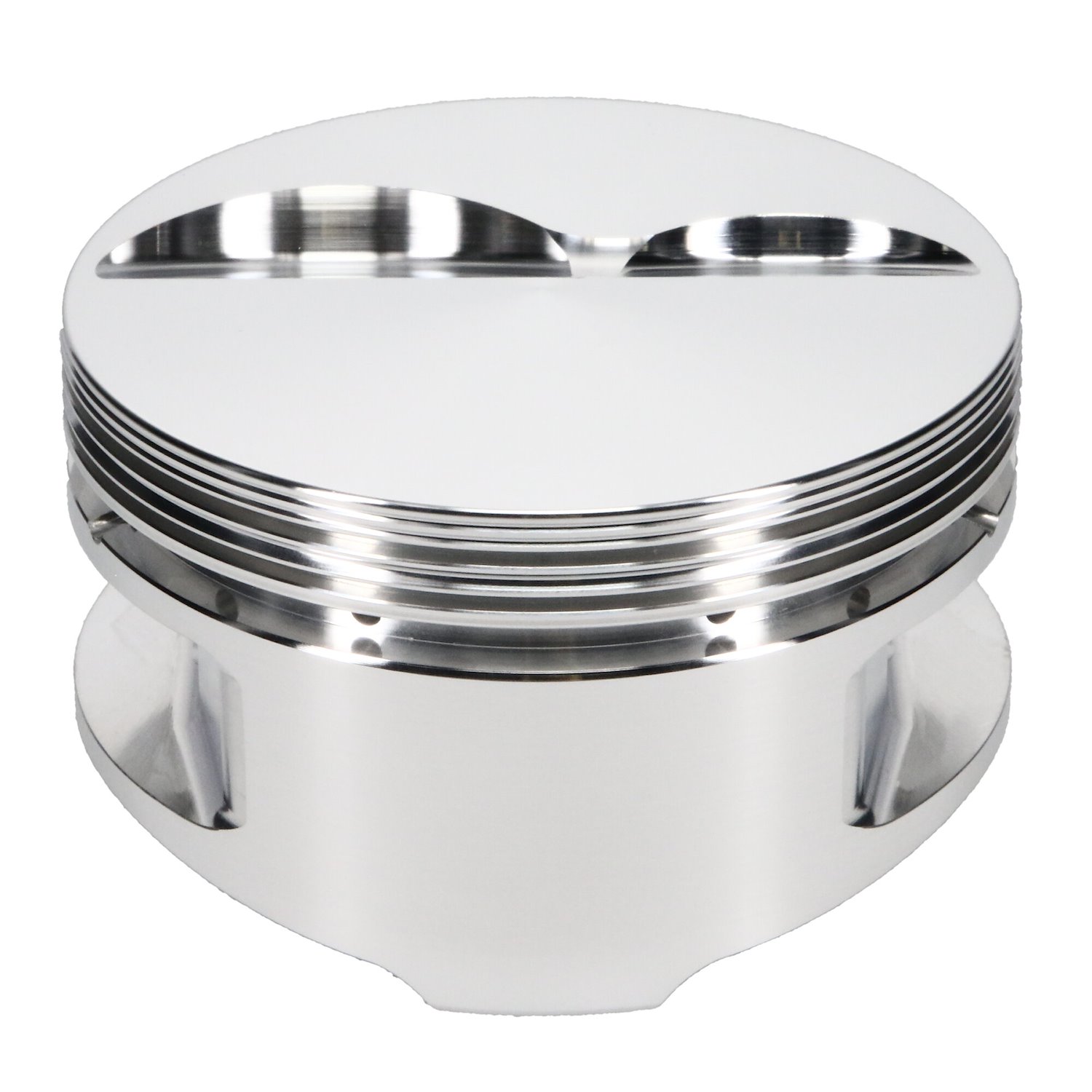

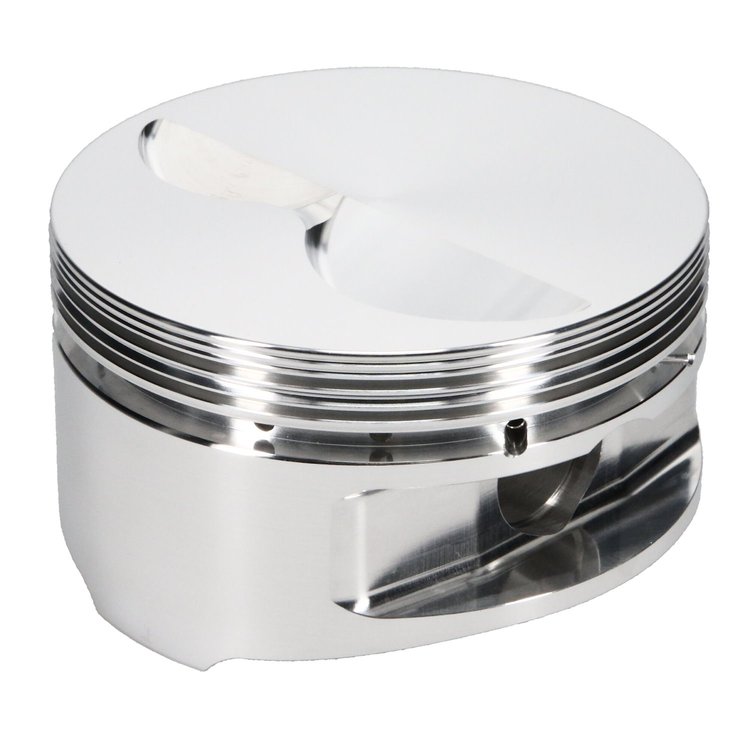

Small Block Chevy Standard Duty Flat Top
- SB-Chevy Flat Top Pistons
- Bore 4.040"
- Ring Size 1/16, 1/16, 3/16
Features - Race-proven, low-contact skirt design
- Work with angle-milled heads
- Forced pin oiler with annular reservoir
- Valve reliefs to accommodate oversized valves and high-lift cams
- JE lightweight wrist pins (118g)
- Double spiral locks
Specs
- Overbore .040"
- Stroke 3.500"
- Rod Length 6.000"
- Dome Volume -5cc
- Compression Height 1.250"
- Compression Ratio:
11.2:1 with 58cc head
10.3:1 with 64cc head
9.1:1 with 76cc head
Part TypePiston
BrandJE PISTONS
Package Height6.1
Package Width11.3
Package Length25.2
Weight12.35 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number181918
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
