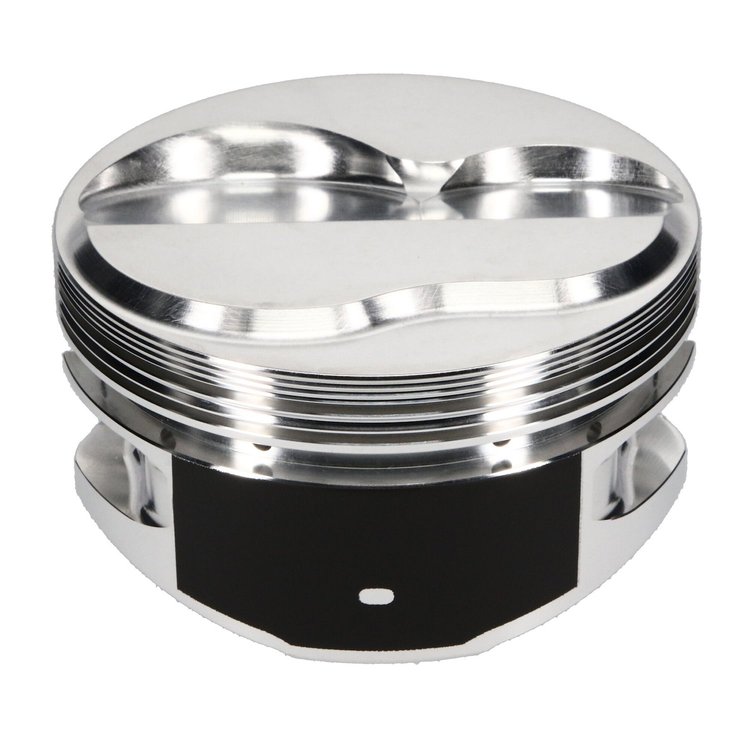

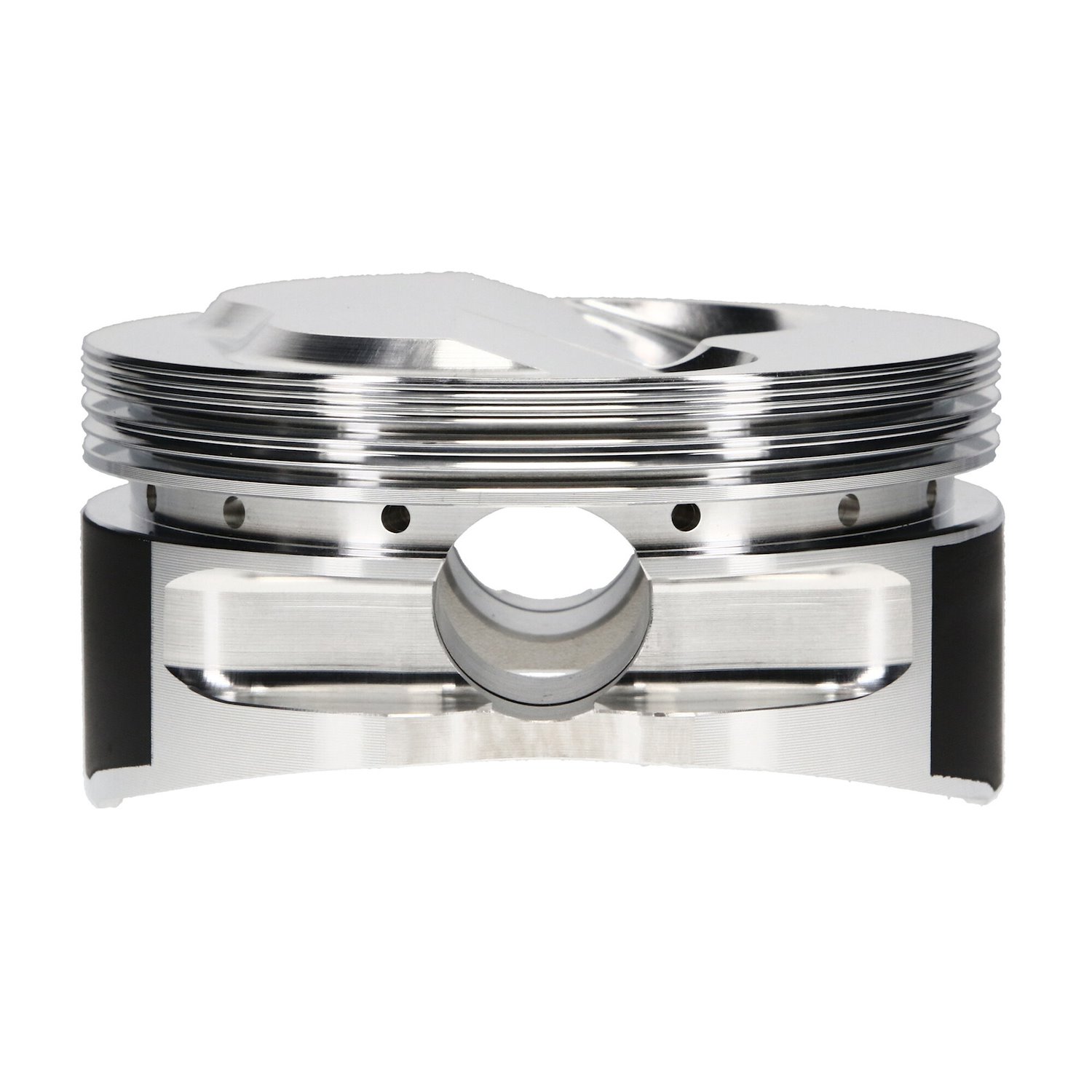

SB-Chevy 18° Dome Pistons Bore 4.030"

Name: SB-Chevy 18° Dome Pistons Bore 4.030"
Brand: JE PISTONS
SKU: 532-181965
Price: 1076.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy 18 Degree Solid Dome

Bore 4.030"
Ring Size 1/16, 1/16, 3/16

Features
Smooth flow for optimum flame travel
Work with angle-milled heads
Valve reliefs to accommodate oversized valves and high-lift cams
JE 51S wrist pins (130g)
Double spiral locks
Specs
Stroke 3.500"
Rod Length 6.000"
Dome Volume 3cc
Compression Height 1.250"
Compression Ratio:
13.6:1 with 52cc head
13:1 with 55cc head
12.4:1 with 58cc head

Part TypePiston

BrandJE PISTONS

Package Height6.2

Package Width11.4

Package Length25.3

Weight13.6 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number181965

Package Qty1

Package TypeEA
