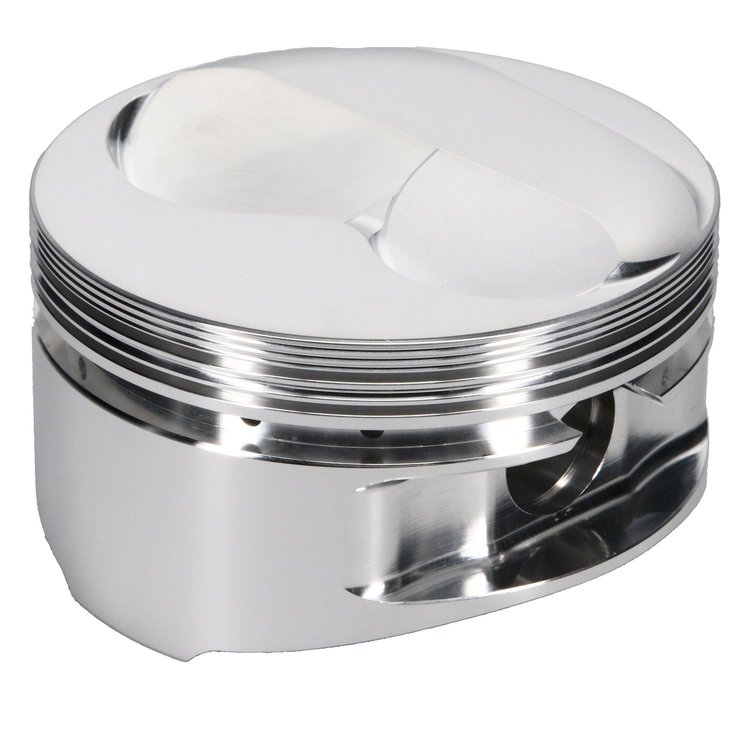

SB-Chevy 23° Dome Pistons Bore 4.125"/Stroke 3.875"
InfoVehicle Info Needed
JE PISTONSPART NUMBER: 532-182033

SB-Chevy 23° Dome Pistons Bore 4.125"/Stroke 3.875"

$1,07699
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

Small Block Chevy 18 Degree Solid Dome
    SB-Chevy 23° Dome Pistons
  • Bore 4.125"/Stroke 3.875"
  • Ring Size 1/16, 1/16, 3/16

    Features
  • Smooth flow for optimum flame travel
  • Work with angle-milled heads
  • Valve reliefs to accommodate oversized valves and high-lift cams
  • JE 51S wrist pins (130g)
  • Double spiral locks
  • Oil rail support

    Specs

  • Rod Length 6.000"
  • Dome Volume 3cc
  • Compression Height 1.062"
  • Compression Ratio:
    14.2:1 with 58cc head
    13.1:1 with 64cc head
    11.3:1 with 76cc head

    Engineered for the Win

    JE high-performance pistons for domestic engines deliver championship-proven technology and race-bred precision to every build. Designed, machined, and inspected in the USA, each piston reflects JE’s legacy of innovation in material science, computer-aided design, and CNC manufacturing. From street performance to all-out competition, these pistons provide the strength, consistency, and thermal stability demanded by serious engine builders. Choose from configurations tailored to popular GM, Ford, and Mopar platforms, with compression ratios, coatings, and ring options engineered for maximum efficiency, reliability, and power.

Part TypePiston
Product LineJE Performance Pistons for Domestic Engines
BrandJE PISTONS
Package Height6.3
Package Width11.9
Package Length12.0
Weight12.65 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number182033
Package Qty1
Package TypeEA
