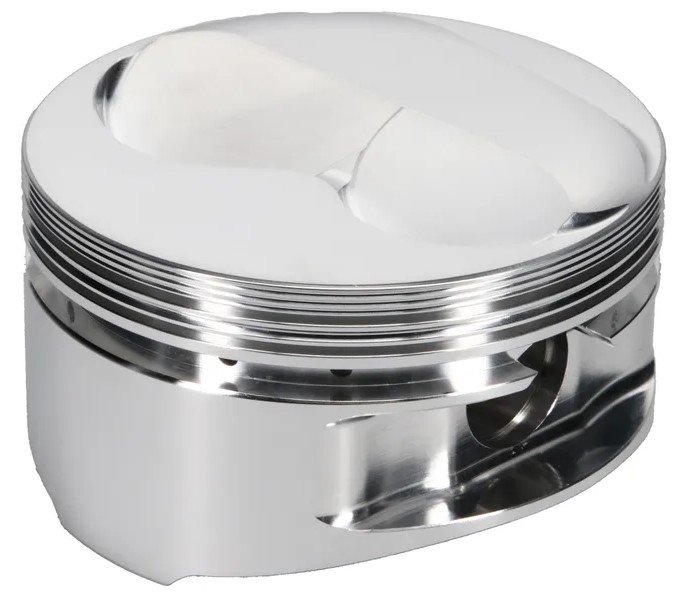

Left Side Forged Dome Piston for 422 ci. Small Block Chevy 4.165 in. Bore, 3.875 in. Stroke (400 ci. Block)
Product Discontinued
JE PISTONSPART NUMBER: 532-182037-1L

Left Side Forged Dome Piston for 422 ci. Small Block Chevy 4.165 in. Bore, 3.875 in. Stroke (400 ci. Block)

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy 23 Degree Solid Dome
Forged Dome Piston
  • Left Side Only
  • 422 ci. Small Block Chevy
  • Use 400 Block
  • 23 Degree Heads
  • Bore: 4.165 in.
  • Stroke: 3.875 in.
  • Rod: 6 in.
  • Compression Height: 1.062 in.
  • Block Deck Height: 9 in.
  • 1/16, 1/16, 3/16 in. Ring Grooves

    JE Pistons 182037-1L Forged Dome Piston for 422 ci. Small Block Chevy Specifications:

    • (1) Piston for left/driver side of engine only w/wrist pin and locks
    • 400 ci. block with 23-degree cylinder heads
    • Bore: 4.165 in. (.040 in. oversize)
    • Crankshaft Stroke: 3.875 in.
    • Connecting Rod Length: 6 in.
    • Block Deck Height: 9.00 in.
    • Compression Distance: 1.062 in.
    • Compression Ratio: 15:1 w/58 cc, 13.8:1 w/64 cc, 11.8:1 w/76 cc combustion chamber volume
    • Dome Volume: 5.6 cc
    • Piston Material: 2618 forged aluminum
    • Gram Weight: 469
    • Piston Pin Outside Diameter: .927 in.
    • Piston Pin Length: 2.750 in.
    • Part TypePiston
    BrandJE PISTONS
    Package Height4.4
    Package Width4.6
    Package Length4.7
    Weight1.45 PG
    Part CategoryPerformance Parts
    Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
    Wrist Pin StyleFull Floating
    QuantitySold individually
    Piston MaterialForged
    Pin Diameter0.927 in (23.5 mm)
    Part FitmentSemi Universal
    Piston StyleDome, with two valve reliefs
    Bore4.165 in (105.791 mm)
    Vendor Part Number182037L
    Package Qty1
    Package TypeEA
