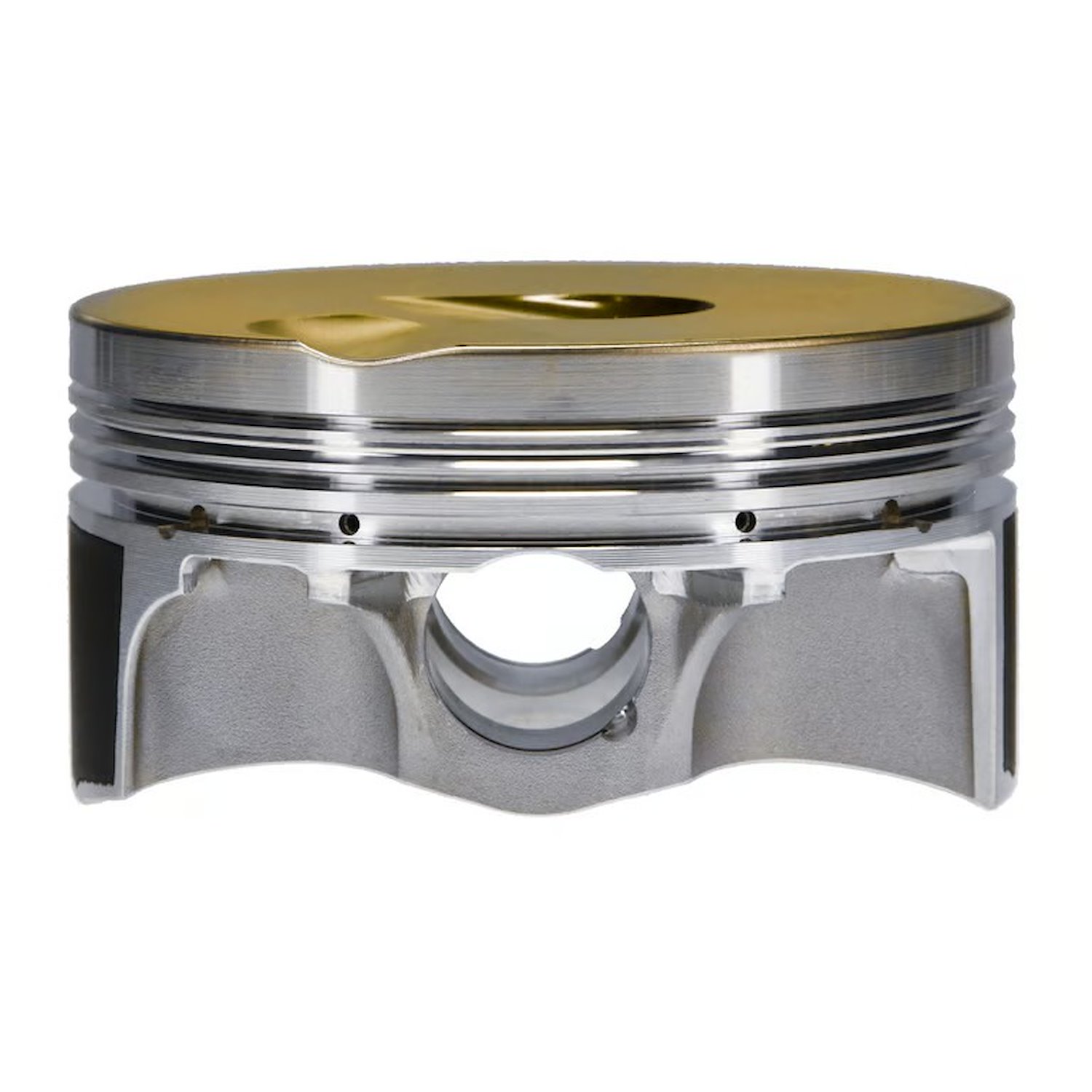

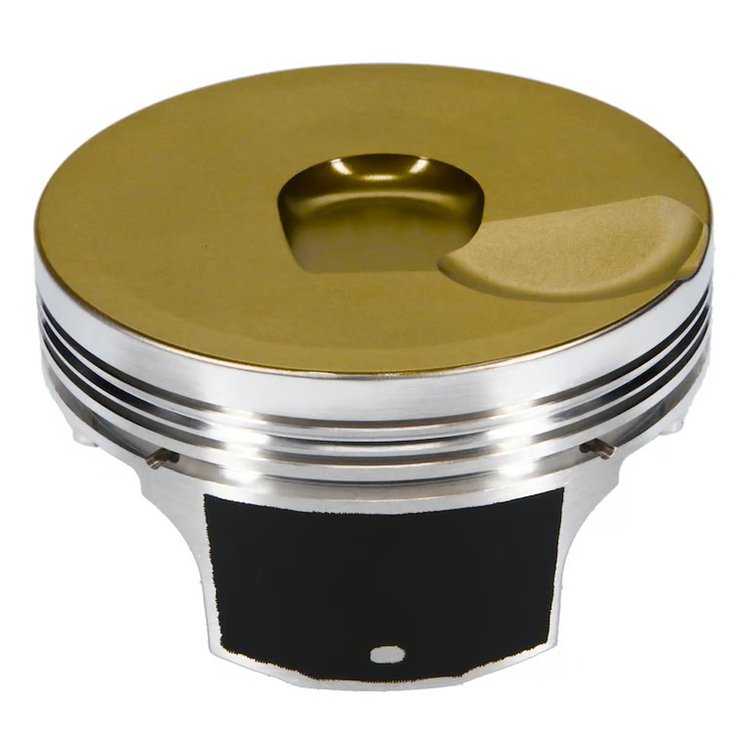

JE Pistons 360796 Features:

Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

• Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
• Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
• Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
• High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
• Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
• Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
• Made 100% in the USA
• Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
• Cylinder Head: GEN 5 LT4
• Bore Diameter: 4.070 in.
• Piston Head Type: Dish
• Compression Height: 1.105 in.
• Piston Volume: -15.50 cc
• Piston Material: 2618
• Forging Type: FSR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.0475 in.
• Second Compression Ring Thickness: 0.0600 in.
• Oil Ring Thickness: 0.149 in.
• Wrist Pin Included: Yes
• Wrist Pin Part Number: 927-2250-18-93C
• Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
• Wrist Pin Outer Diameter: 0.927 in.
• Wrist Pin Length: 2.250 in.
• Wrist Pin Wall Thickness: 0.200 in.
• Wrist Pin Retainer Included: Yes
• Wrist Pin Retainer Part Number: 927-073-MW
• Engine Displacement: 416 CID
• Engine Stroke: 4.000 in.
• Connecting Rod Length: 6.125 in.
• Deck Height: 9.240 in.
• Ring Set Thickness: 1.20 MM x 1.50 MM x 3.00 MM
• Oversized: Yes
• Ring Set - Recommended: JG31F8-4070-0
• OEM Bore Diameter: 4.065
• Piston Sub-Series: LT4 (Gen V)
• Engine Family: LS
• Oversized Amount: 0.005
• Compression Ratio: 10.00:1 / 65.50 CC Head
• Engine: LT4 (Gen V)
• Make: Chevrolet
• Engine Type: ICE
• Piston Series: JE Ultra Series
