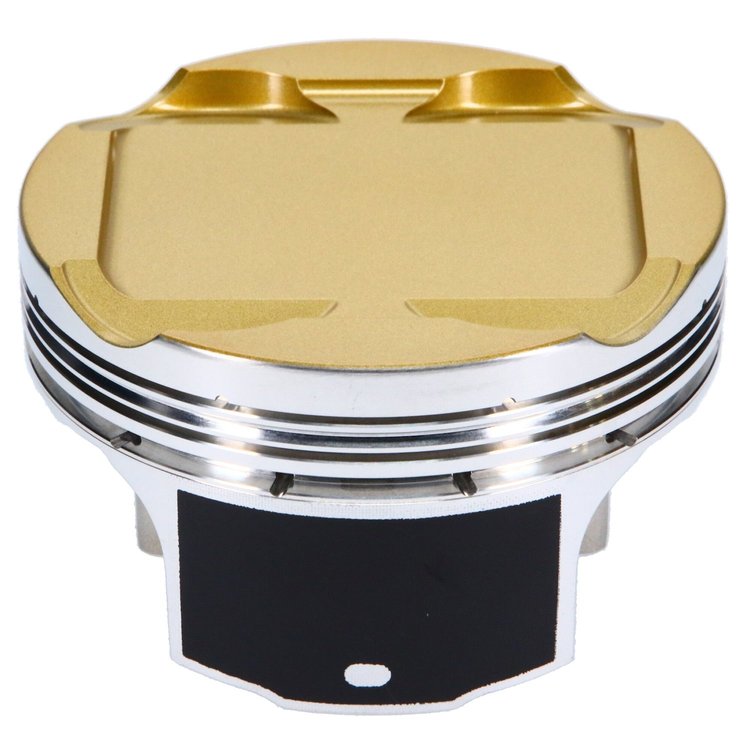

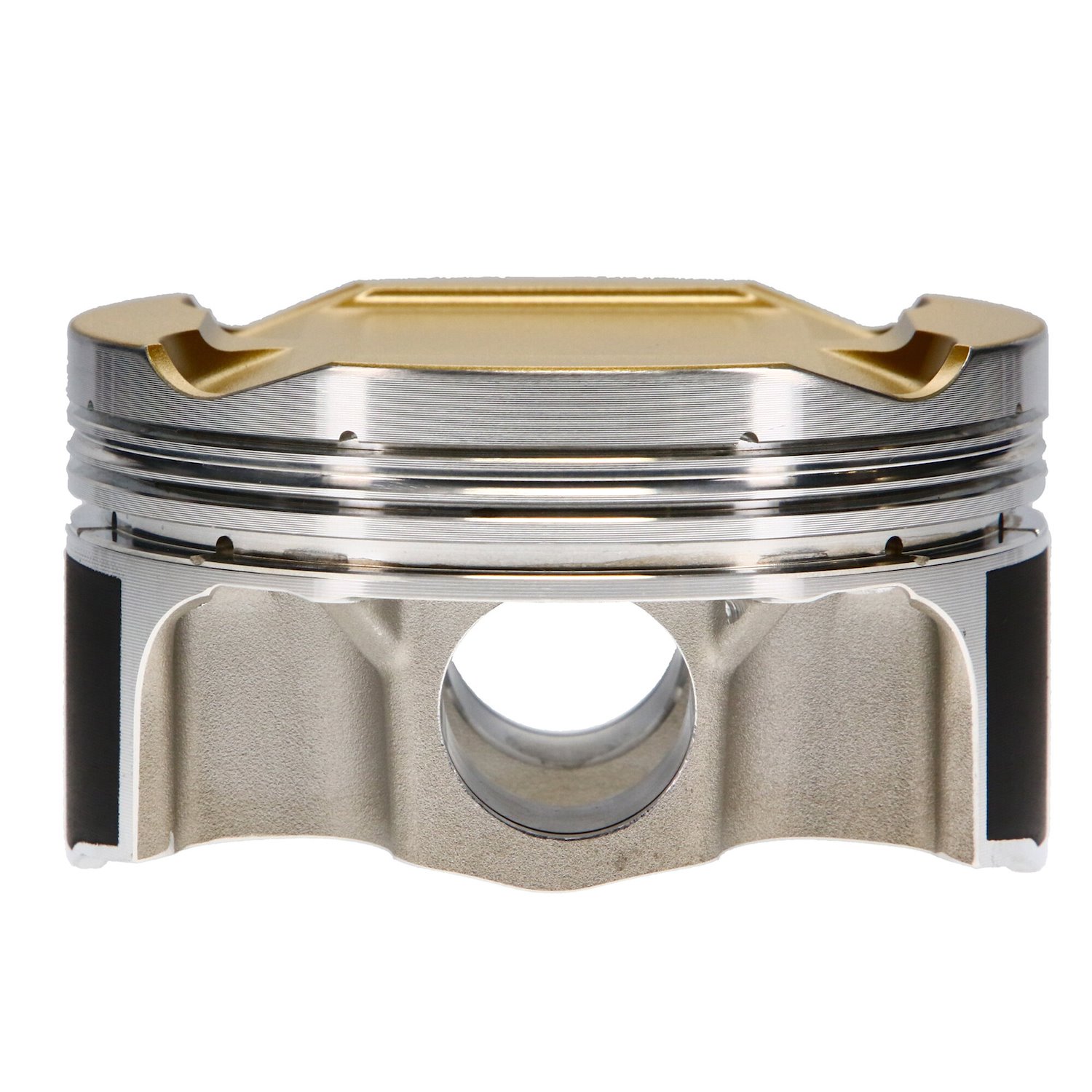

JE Pistons 361319 Features:

Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

• Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
• Made 100% in the USA
• Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
• Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
• Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
• Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
• High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
• Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
• Piston Series: JE Ultra Series
• Cylinder Head: EJ205 WRX
• Bore Diameter: 92.50 mm
• Piston Head Type: Dish
• Compression Height: 1.287 in.
• Piston Volume: -11.70 cc
• Piston Material: 2618
• Forging Type: FSR
• Piston Average Weight: 367 GR
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0395 in.
• Second Compression Ring Thickness: 0.0480 in.
• Oil Ring Thickness: 0.111 in.
• Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
• Wrist Pin Outer Diameter: 0.905 in.
• Wrist Pin Length: 2.250 in.
• Wrist Pin Wall Thickness: 0.210 in.
• Engine: EJ Series
• Make: Subaru
• Engine Type: ICE
