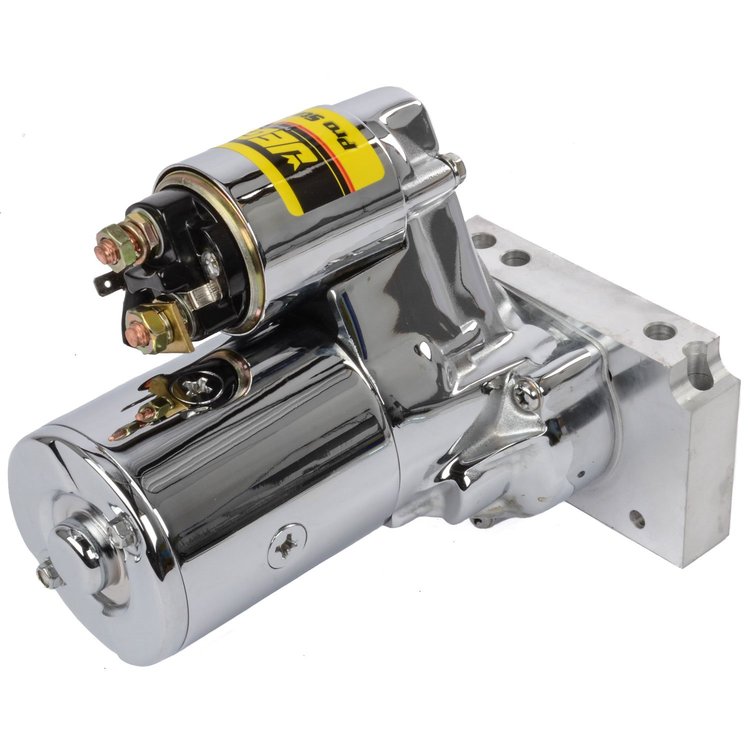

Hitachi-Style Mini Starter for Small Block and Big Block Chevy
Product Discontinued
JEGSPART NUMBER: 555-10020

Hitachi-Style Mini Starter for Small Block and Big Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Heavy-Duty Hitachi-Style Mini Starter
    Mini Starter
  • Small Block/Big Block Chevy
  • 153/168-tooth
  • Straight Bolt Mount
  • 3.70:1 Gear Reduction
  • 14.0:1 Compression
  • 1.9 HP
  • 1.4kW
  • 11.6 lbs.
  • Chrome Finish
  • Made in the USA

  • Fits all Small Block Chevy except LS series engines (LS1, LS6, 4.8L, 5.3L, and 6.0L)
  • May require the use of "R" Terminal Diode Kit 555-10038, which allows the use of aftermarket mini starters in GM vehicles originally equipped with breaker point ignitions
  • Starter cover is chrome, solenoid cover is clearcoated brushed steel

    Mini Starters with Mega Power

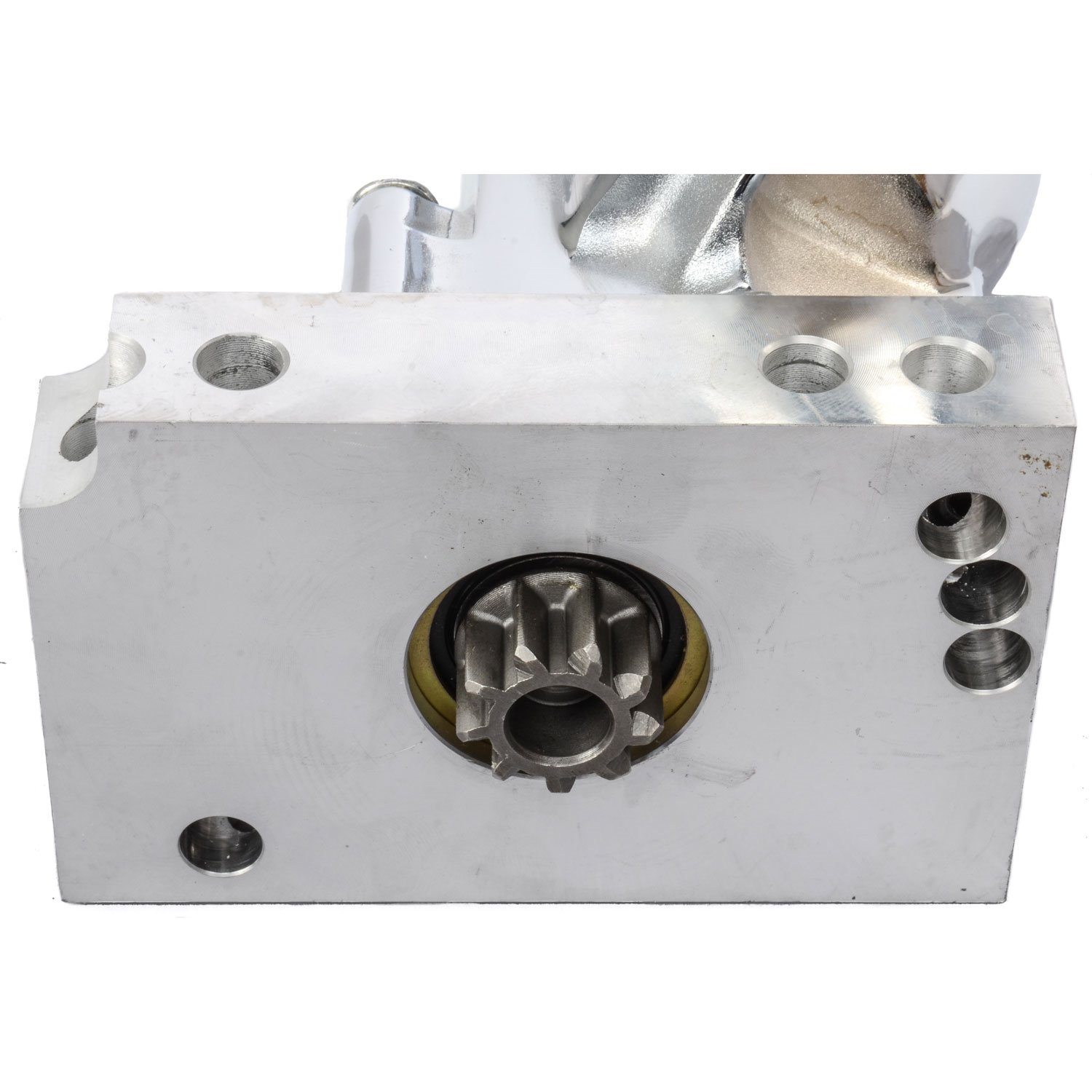

    JEGS Heavy-Duty Hitachi-Style Mini Starters are designed with 1.4kW, a 3.7:1 gear ratio, full ball bearings, and the power to crank up to 16:1 compression engines. They will clear most oversized kick-out oil pans. Weighing around 12 pounds, these starters use an aluminum adapter with adjustable mounting positions. Shims and mounting hardware included

Part TypeStarter
Product LineJEGS Mini Starters
BrandJEGS
Package Height6.4
Package Width7.5
Package Length12.4
Weight11.78 PG
Part CategoryPerformance Parts
Starter FinishChrome
Flywheel/Flexplate158/168-tooth
Starter RotationStandard
Starter StyleHitachi
Maximum Recommended Compression Ratio14.0:1
Mounting Block MaterialBillet aluminum
Adjustable Mounting BlockYes
MaterialAluminum/Steel
Gear Reduction Ratio3.70:1
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
