Vehicle Info NeededJEGSPART NUMBER: 555-14400

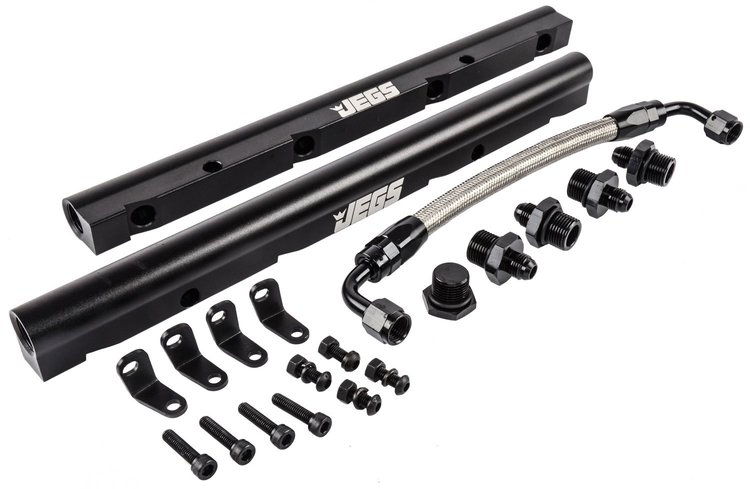

EFI Fuel Rails for GM LS1 and LS6 Factory Intake Manifolds
$12099
More than 10 available
Ships Tomorrow
Lowest Price GuaranteeFuel Rails
Fuel RailsGM LS1 & LS6 OE Intakes Black Anodized Aluminum Includes:
- (4) -6 AN to -8 AN O-Ring Fittings
- (1) 12 in. -6 AN Crossover Hose
- (1) -8 O-Ring Port Plug
- Mounting Hardware
JEGS 555-14400 GM LS EFI Fuel Rails Features:
- Designed for OE-style LS1 and LS6 intake manifolds
- High horsepower capability feeding up to 1,100+ hp engines
- Features 1/2 in. diameter inner bore to decrease fuel pressure drop, help cancel out back pulses, and distribute fuel to all injectors properly
- Includes fuel rails, matching fittings, crossover hose, and hardware
- Black anodized aluminum for great looks and long life
- Due to the wide range of vehicle applications these fuel rails fit, possible firewall modification may be required for fitting clearance.
- Installation of these fuel rails may block the intake manifold bolts requiring removal for servie of the intake manifold in the future.
JEGS 555-14400 GM LS EFI Fuel Rails Notes:
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeFuel Rail
BrandJEGS
Package Height1.9
Package Width5.3
Package Length16.9
Weight3.25 PG
Part CategoryReplacement Parts
Hardware IncludedYes
Fuel Rail MaterialAluminum
Fuel Rail FinishBlack anodized
Fittings IncludedYes
Part FitmentSemi Universal
Package Qty1
Package TypeEA
No Questions
No Reviews
