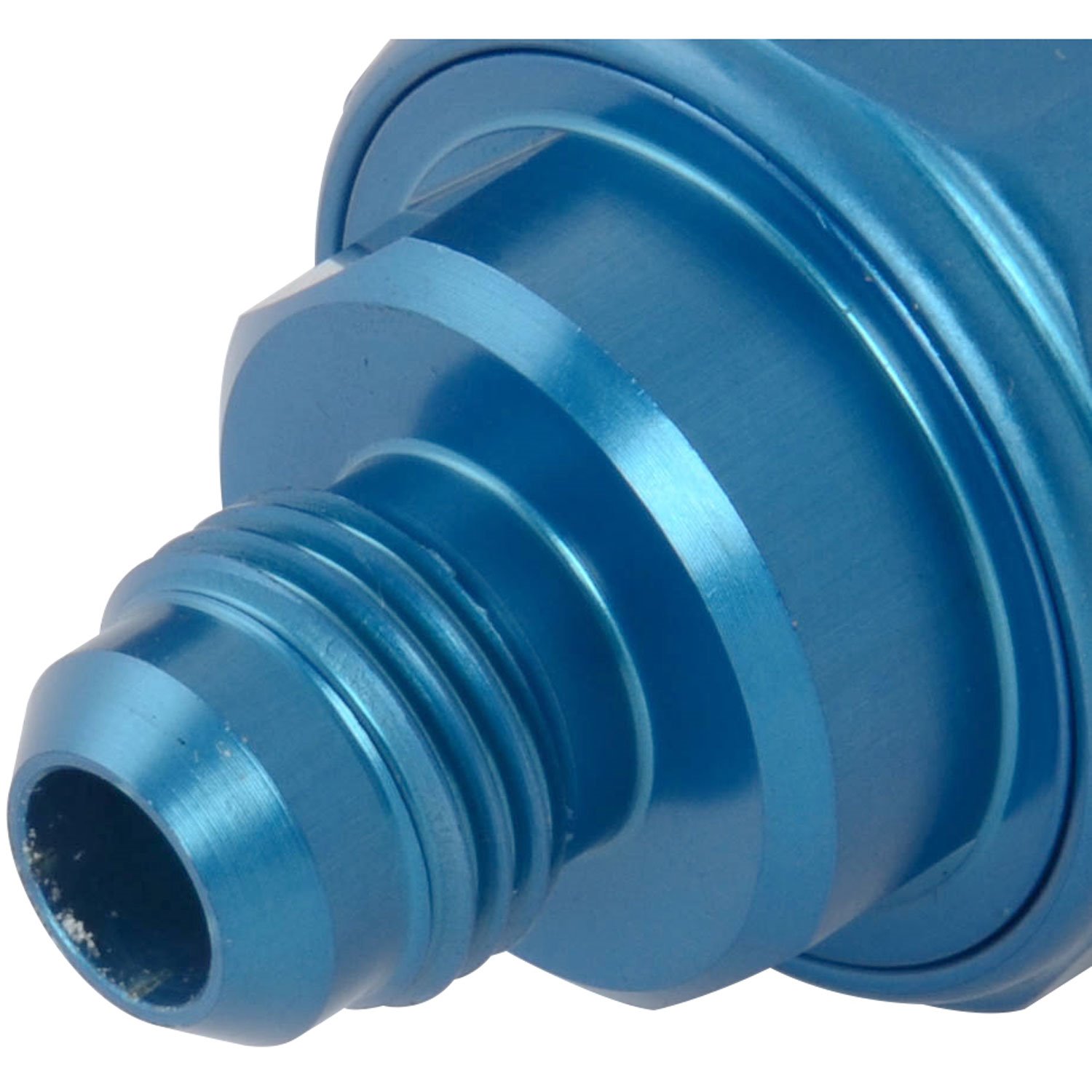

Compact Billet Aluminum In-Line Fuel Filter, 2 5/16 in. Long [-6 AN Male/Male, Blue]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-15032

Compact Billet Aluminum In-Line Fuel Filter, 2 5/16 in. Long [-6 AN Male/Male, Blue]

$3199$34.49You Save$2.50
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

-6 AN Male/Male Compact Billet In-Line Fuel Filters
Compact Billet Aluminum In-Line Fuel Filter
  • -6 AN Male/Male
  • Length: 2 5/16 in.
  • Hexagon Width: 1.250 in.
  • Dia: 1.366 in.
  • Compatible w/ Gas or Alcohol
  • Flows up to 130 gph @ 75 psi
  • 40 Micron
  • Billet Aluminum
  • Blue Anodized Finish

    JEGS 555-15032 Compact Billet Aluminum In-Line Fuel Filter

    • Compact design allows installation in tight spaces, and contoured hex housings fit AN wrenches
    • Constructed from 6061 billet aluminum and blue anodized for great looks and long life
    • Compatible with gas and alcohol
    • Replaceable 40-micron stainless steel element flow fuel in either direction to make filters completely reversible
    • Flows up to 130 gph @ 75 psi
    • Part TypeFuel Filter
    BrandJEGS
    Package Height0.6
    Package Width2.8
    Package Length4.0
    Weight0.25 PG
    Part CategoryPerformance Parts
    Filter Element IncludedYes
    Smallest Particle Filtered40 microns
    Outlet Size-6 AN
    Inlet Size-6 AN
    Outlet Quantity1
    Filter Element MaterialStainless steel mesh
    QuantitySold individually
    Overall Length2.31 in (58.7 mm)
    Inlet AttachmentMale Threads
    Fuel Filter StyleInLine
    Fuel TypeMethanol
    Filter Housing MaterialAluminum
    Mounting Bracket IncludedNo
    Outlet AttachmentMale Threads
    Filter Housing FinishBlue
    Fittings IncludedYes
    Inlet QuantityOne
    Part FitmentUniversal
    Outside Diameter1.41 in (35.8 mm)
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
