![Compact Billet Aluminum In-Line Fuel Filter, 2 5/16 in. Long [- 6AN Male/Female, Blue]](https://www.jegs.com/images/mini_750/500/555/555-15034.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-15034

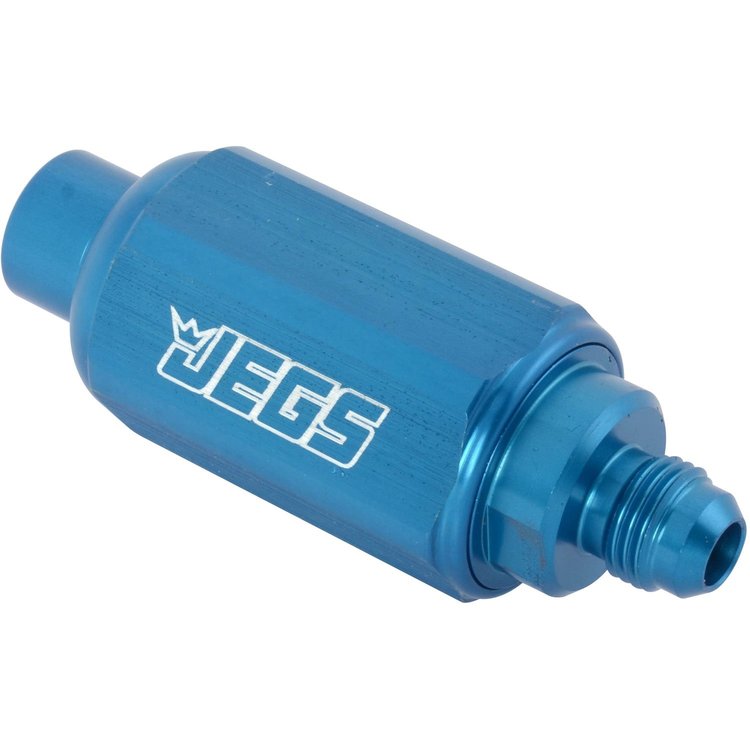

Compact Billet Aluminum In-Line Fuel Filter, 2 5/16 in. Long [- 6AN Male/Female, Blue]
$3599$38.89You Save$2.90
5 left in stock
Ships Today
Lowest Price Guarantee-6 AN Male/FemaleCompact Billet In-Line Fuel Filters
Compact Billet Aluminum In-Line Fuel Filter-6 AN Male/Female Length: 2 5/16 in. Hexagon Width: 1.250 in. Dia: 1.366 in. Compatible w/ Gas or Alcohol Flows up to 130 gph @ 75 psi 40 Micron Billet Aluminum Blue Anodized Finish
JEGS 555-15034 Compact Billet Aluminum In-Line Fuel Filter
- Compact design allows installation in tight spaces, and contoured hex housings fit AN wrenches
- Constructed from 6061 billet aluminum with a blue anodized finish for great looks and long life
- Compatible with gas and alcohol
- Replaceable 40-micron stainless steel element flow fuel in either direction to make filters completely reversible
- Flows up to 130 gph @ 75 psi
Part TypeFuel Filter
BrandJEGS
Package Height1.5
Package Width1.5
Package Length2.3
Weight0.25 PG
Part CategoryPerformance Parts
Filter Element IncludedYes
Smallest Particle Filtered40 microns
Outlet Size-6 AN
Inlet Size-6 AN
Outlet Quantity1
Filter Element MaterialStainless steel mesh
QuantitySold individually
Overall Length2.31 in (58.7 mm)
Inlet AttachmentMale Threads
Fuel Filter StyleInLine
Fuel TypeMethanol
Filter Housing MaterialAluminum
Mounting Bracket IncludedNo
Outlet AttachmentFemale Threads
Filter Housing FinishBlue
Fittings IncludedYes
Clamps IncludedNo
Inlet QuantityOne
Part FitmentUniversal
Outside Diameter1.41 in (35.8 mm)
Package Qty1
Package TypeEA
