![Compact Billet Aluminum In-Line Fuel Filter [-6 AN Male/90-Degree Female, Blue]](https://www.jegs.com/images/mini_750/500/555/555-15044.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-15044

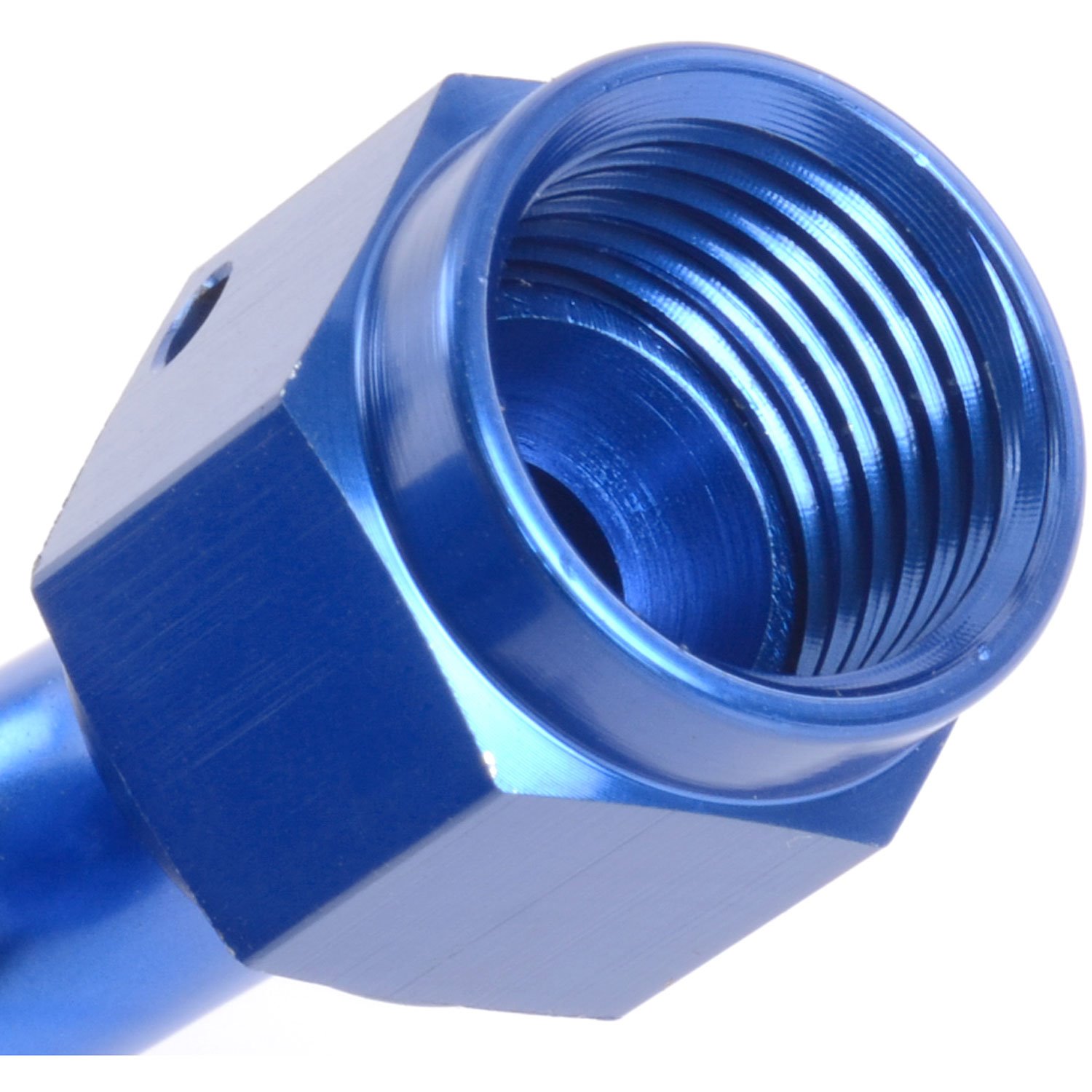

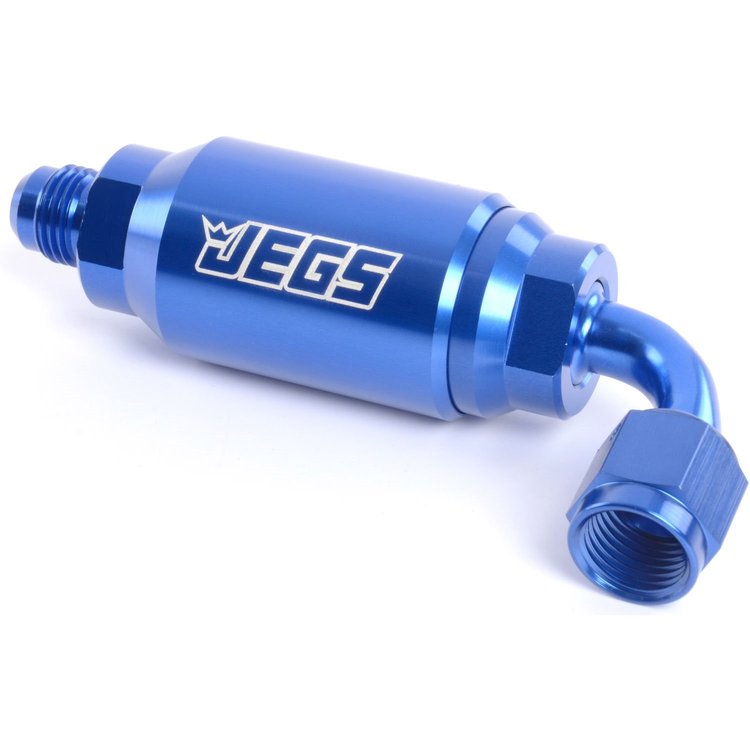

Compact Billet Aluminum In-Line Fuel Filter [-6 AN Male/90-Degree Female, Blue]
$4299$46.39You Save$3.40
More than 10 available
Ships Today
Lowest Price Guarantee-6 AN Male/90-Degree Female Compact Billet Aluminum In-Line Fuel Filters
Compact Billet In-Line Fuel Filter-6 AN Male/90-Degree Female Length: 4 1/4 in. Diameter: 1.222 in. Compatible with Gas or Alcohol Flows up to 130 gph @ 75 psi 40 Micron Stainless Steel Filter Billet Aluminum Blue Anodized Finish
JEGS 555-15044 Compact Billet Aluminum Fuel Filter
- Compact design allows installation in tight spaces, and contoured hex housings fit wrenches
- Constructed from 6061 billet aluminum and blue anodized for great looks and long life
- Compatible with gas and alcohol
- Replaceable 40-micron stainless steel element flow fuel in either direction to make filters completely reversible
- Flows up to 130 gph @ 75 psi
In-Line AN Filters That Will Keep Your Fuel System Clean
Made from billet aluminum JEGS 90-Degree Fuel Filters come with a 40-micron stainless steel filter and have a hard anodized black or blue finish. These 90-degree Fuel Filters are available in two sizes. JEGS Fuel Filters flow in either direction and are easy to install and clean.
Part TypeFuel Filter
Product LineJEGS 90-Degree Compact Billet In-Line Fuel Filters
BrandJEGS
Package Height0.5
Package Width3.2
Package Length3.8
Weight0.2 PG
Part CategoryPerformance Parts
Filter Element IncludedYes
Smallest Particle Filtered40 microns
Outlet Size-6 AN
Inlet Size-6 AN
Outlet Quantity1
Filter Element MaterialStainless steel mesh
QuantitySold individually
Overall Length4.25 in (108 mm)
Inlet AttachmentMale Threads
Fuel Filter StyleInLine
Fuel TypeGas, Alcohol, E85
Filter Housing MaterialAluminum
Mounting Bracket IncludedNo
Outlet AttachmentFemale Threads
Filter Housing FinishBlue
Fittings IncludedYes
Clamps IncludedNo
Inlet QuantityOne
Part FitmentUniversal
Outside Diameter1.22 in (31 mm)
Package Qty1
Package TypeEA
