Made in USA

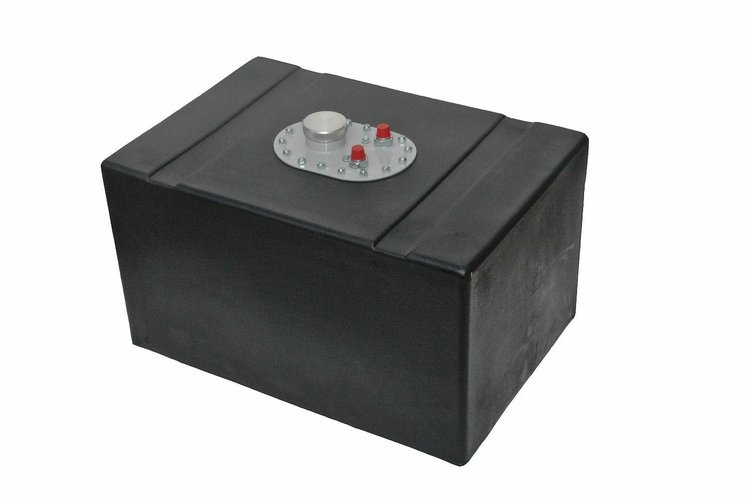

Circle Track Fuel Cell 22 Gallon
Product Discontinued
JEGSPART NUMBER: 555-15503

Circle Track Fuel Cell 22 Gallon

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Fuel Cells
    Circle Track Fuel Cell
  • 22 Gallon
  • (1) -08AN Male Outlet
  • (1) -08AN Male Rollover Vent
  • 16"L x 24"W x 15"H
  • Use 555-15395 Mount (sold separately)

    The nominal dimensions that are published are given for reference only. This cell is a rotationally-molded polyethylene unit. The ambient (room) temperature will affect the cooling rate (once released from the mold) and the nominal dimensions. Please measure your cell first before cutting the floor or drilling for the mounts.

    Keep Fuel Where it's Needed Most

    JEGS circle track fuel cells were developed with the racer in mind and accepted by most sanctioning bodies where a steel outer container is not required. Constructed with seamless roto-molded and cross-linked polyethylene for strength and durability, and will take the punishment of today's harsh racing environment. They feature an internal pickup tube designed to extract fuel from the right rear corner of the cell. Mounting brackets and fuel fill assemblies are also available separately.

Part TypeFuel Cell
Product LineJEGS Circle Track Fuel Cells
BrandJEGS
Package Height17.8
Package Width17.8
Package Length25.8
Weight21.35 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Outlet Fitting QuantityOne
Outlet Fitting Size-8 AN
UsageCircle Track
SumpNo
FoamNo
Return Fitting SizeN/A
Capacity22 gallons
Vent Fitting Size-8 AN
Sender Ohm RangeN/A
Overall Length16 in (406.4 mm)
MaterialPlastic
Package Qty1
Package TypeEA
