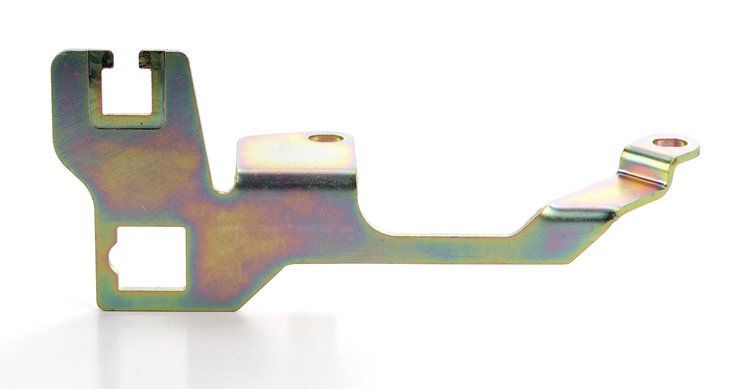

JEGS 555-157313 Throttle and 700R4 Cable Bracket Features:

• Compatible with Edelbrock Performer and Thunder AVS series carburetors, as well as all Quadrajet-style carbs.
• Suitable for TH-350, 700-R4, and 200-4R transmissions kickdown cables.
• Adaptable to GM-style throttle cables, with the option for modification to work with aftermarket throttle cables.
• Assembled with high-quality materials, featuring zinc-plating for durability and aesthetics.

JEGS 555-157313 Throttle and 700R4 Cable Bracket Notes:

• Some low-profile intake manifolds may require an intake to carb spacer & studs (sold separately) based on runner height and shape behind the carb.
• For Edelbrock carbs, use 720-98A and 555-15841 with in-board mounting holes. For Q-Jet carbs, use 555-15841, and 1/2 in. longer bolts at front.

FAQ

What is a transmission throttle cable?

• A transmission throttle cable connects the accelerator pedal to the throttle body, regulating the engine's RPM.

What is the purpose of the TV cable on a 700R4 transmission?

• The TV cable, or throttle valve cable, controls transmission line pressure, ensuring proper shifting and performance.

Can you run a 700R4 without a TV cable?

• No, a functioning TV cable is essential for proper 700R4 transmission operation, preventing damage and ensuring smooth shifts.

What job does the throttle valve cable perform?

• The throttle valve cable adjusts internal pressure, optimizing shifting patterns and enhancing overall transmission efficiency.
