• 104 GPH (310 LPH) @ 7 psi
• 75 GPH (283 LPH) @ 40 psi
• 63 GPH (240 LPH) @ 58 psi

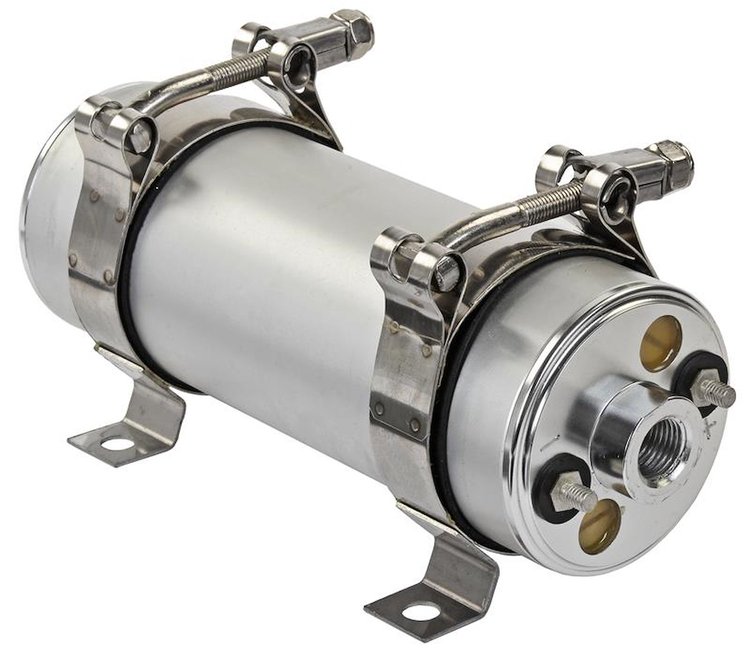

JEGS 555-159010 HP Electric Fuel Pump Features:

• Maximum recommended operating pressure: 65 psi continuous, 90 psi intermittent
• Supports carbureted gasoline engines up to approximately 900 hp normally aspirated and 700 hp turbo/supercharged
• Compatible with EFI gasoline engines up to approximately 700 hp normally aspirated and 500 hp turbo/supercharged
• For use with either carbureted or fuel-injected gasoline engines
• This fuel pump utilizes port-style O-ring fittings; -8 AN inlet and -6 AN outlet. DO NOT use pipe thread or thread sealant with these fittings.
• Includes brass stud terminals (for quick and reliable electrical connection) with boots and two t-bar style mounting clamps
• Pump dimensions: length 7 3/4 in., diameter: 2 1/2 in., base to top of mounting bracket: 3 3/4 in.

JEGS 555-159010 HP Electric Fuel Pump Rating Formulas:

• All GPH Ratings Measured at 13.5 Volts
• LPH = (GPH x 3.785)
• GPH = (LPH / 3.785)
• PSI = (Fuel Rail Pressure + Boost Pressure)

JEGS 555-159010 HP Electric Fuel Pump Rating Notes:

• A high-capacity fuel “pre-filter” with either a 40 micron, to no greater than 100 micron rated element should be installed in the fuel line between the tank and the fuel pump inlet.
• A by-pass or return style fuel pressure regulator MUST be used with this fuel pump.
• You can gravity feed this pump by mounting it as low and as close as possible to the fuel tank. The installation of either a rear mount reservoir style sump or a high flow capacity fuel tank pickup in your stock tank is highly recommended. These will ensure that the fuel pump is able to self-prime and avoid pump starvation and cavitation. Failure to follow these recommendations will result in poor fuel system performance and drastically shorten the fuel pump's life.
