In-Line External EFI Fuel Pump [255 LPH]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-15954

In-Line External EFI Fuel Pump [255 LPH]

$8999$98.99You Save$9.00
More than 10 available
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

AN to Metric Adapter Fitting [-6 AN Male to 18mm x 1.5 Male, Black]

JEGS

AN to Metric Adapter Fitting [-6 AN Male to 18mm x 1.5 Male, Black]

Part Number : 555-101314
$599$6.99
You Save$1.00
AN to Metric Adapter Fitting [-6 AN Male to 12mm x 1.5 Male, Black]

JEGS

AN to Metric Adapter Fitting [-6 AN Male to 12mm x 1.5 Male, Black]

Part Number : 555-108349
$799$8.99
You Save$1.00
2-Port Pressure Regulator 5-12 PSI Outlet Pressure

JEGS

2-Port Pressure Regulator 5-12 PSI Outlet Pressure

Part Number : 555-159115
$9099$98.29
You Save$7.30
Fuel Pressure Regulator for EFI Equipped Engines [30-100 psi Output Pressure, Black Anodized]

JEGS

Fuel Pressure Regulator for EFI Equipped Engines [30-100 psi Output Pressure, Black Anodized]

Part Number : 555-159120
$9499$104.99
You Save$10.00

Replacement Pump

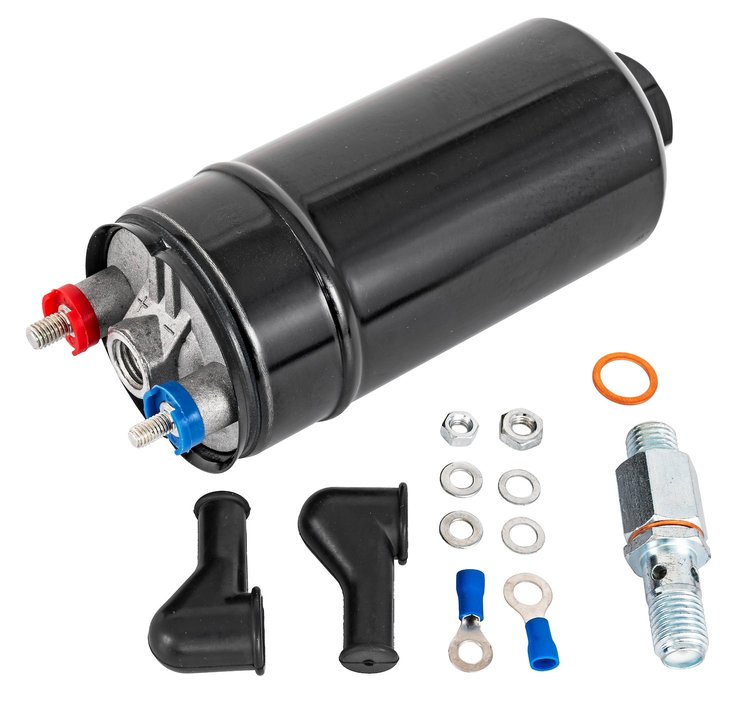

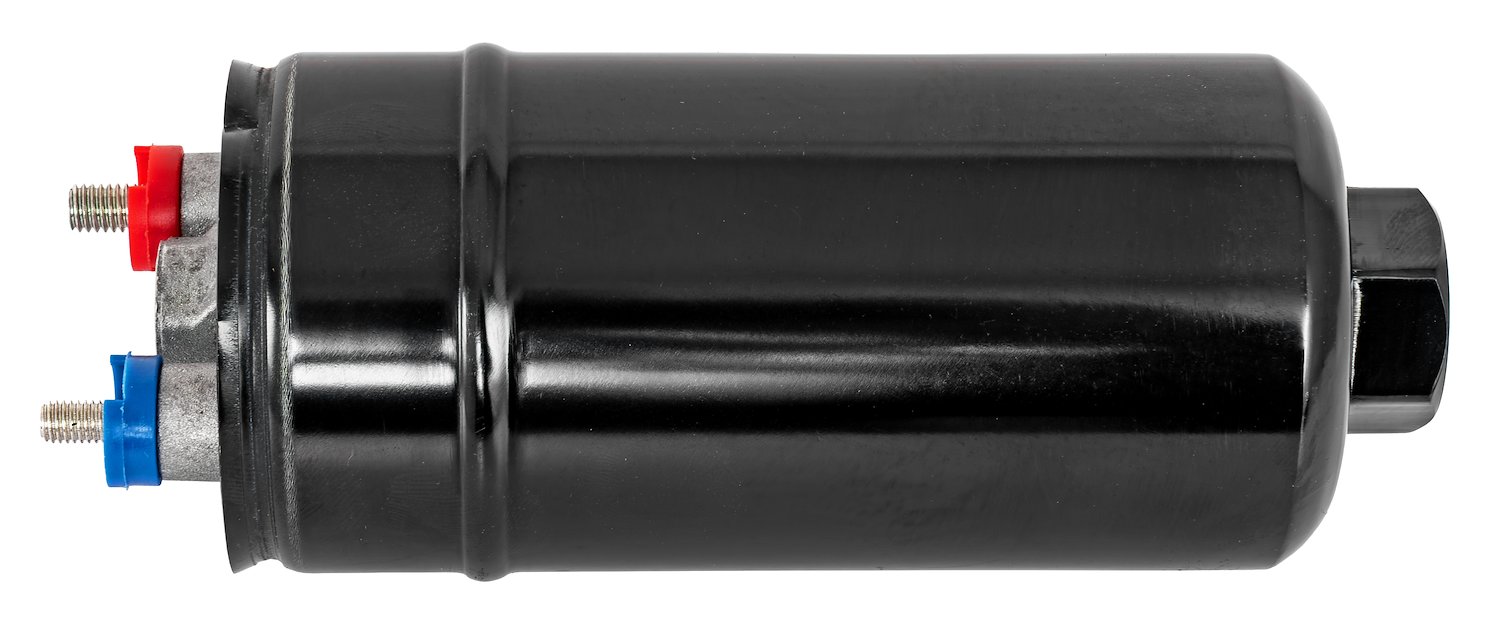

In-Line External EFI Fuel Pump
  • 255 LPH
  • Inlet Size: M18 x 1.5 mm
  • Outlet Size: M12 x 1.5 mm
  • 5 1/2 in. Body Length x 2 3/8 in. Diameter
  • Aluminum Housing
  • Sold Individually

    JEGS 555-15954 In-Line External EFI Fuel Pump Features:

    • Replacement fuel pump for JEGS Fuel Injection In-Line Fuel Delivery Kits 555-15948 and 555-15949

    JEGS 555-15954 In-Line External EFI Fuel Pump Features:

    • (2) 14-16 Gauge Ring Terminals
    • (1) M6-1.0 mm Hex nut
    • (1) M5-0.8 mm Hex nut
    • (2) M6-1.0 mm Flat washers
    • (2) M5-0.8 mm Flat washers
    • (2) Terminal boots
    • High-Pressure Fuel System Plumbing Made Easy

      Mapping out a fuel system for your street rod can be a difficult task. With JEGS in-line fuel delivery kits we've virtually eliminated the hassle of having to figure everything out! With two kits available, both capable of up to 650 HP, you have your choice of either Push-Loc style hose or our premium Pro-Flo 350 braided hose. Each kit comes with all the required fittings, 40 feet of hose, a 255 LPH fuel pump, and both a 60 (pre-filter) AND 30 (post-filter) billet micron filters as well as all the required electrical connectors to get you back on the road!

    Part TypeElectric Fuel Pump
    Product LineJEGS In-Line Fuel Delivery Kits
    BrandJEGS
    Package Height4.5
    Package Width6.3
    Package Length10.6
    Weight2.43 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedNo
    Fitting MaterialAluminum
    Terminal TypeStud
    Outlet Quantity1
    QuantitySold individually
    Boost/Vacuum Reference PortNo
    MaterialAluminum
    Fitting FinishBlack anodized
    Strainer IncludedNo
    Pump TypeElectrical
    Fuel TypeGasoline
    Mounting Bracket IncludedNo
    Flow Rate67 gal/hr
    Mount TypeIn-Line
    Fittings IncludedYes
    Fuel Line IncludedNo
    Part FitmentSemi Universal
    Fuel Filter IncludedNo
    Free Flow Rate255 lph
    Diameter2 3/8 in
    Package Qty1
    Package TypeEA
