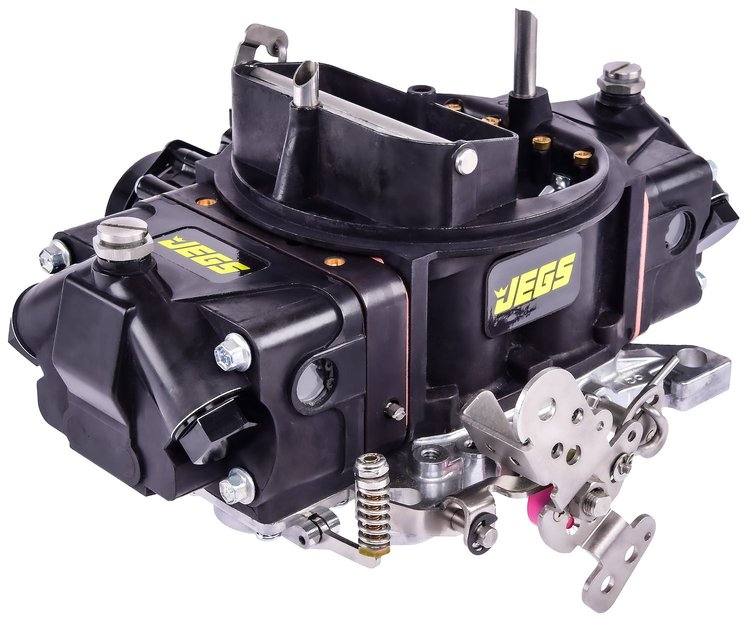

The JEGS 16700 600 CFM 4-Barrel carburetor is an ideal upgrade for the stock or mildly built engine in your vehicle. The flat black electroplated hard-anodized finish will stand out in your engine bay while protecting the aluminum from corrosion.

This unit offers several features that are superior to other carburetors in the same price range. A stainless steel linkage eliminates the worry of rust. Easily adjust your floats with the clear site plugs, no longer do you need to remove the plugs to gauge your progress.

Features

• Comes pre-tuned and ready to run out of the box. Some fine-tuning may be necessary depending on your engine setup.
• Stainless steel shafts and linkage prevent rust and provide added strength
• The zinc carburetor body and fuel bowl's come in a flat black finish created through a hard-anodized process that provides superior corrosion resistance and excellent wear protection
• Carb Specs
  • Jets: #67 (0.068 in. Diameter)
  • Rear metering plate: #77 jet equivalent (0.086 in. Diameter)
  • Power valve: 6.5 Hg (Inches of mercury)
  • Accelerator pump: 30cc
• Uses standard 4160 components for easy rebuild
• Dual feed fuel bowl inlets are threaded on the right/passenger and left/driver sides to allow your choice of fuel line plumbing
• Fuel line inlet thread sizes:
  • Carburetor body to fuel line: 7/8 in. -20
  • Adapter to fuel line: 5/8 in. -18 IF
• Dual-feed fuel inlet center-to-center spacing: 8 21/32 in.
• Includes
  • (1) Base gasket
  • (1) Air filter gasket

Note: Keep track of your adjustments with this downloadable chart below.

Carburetor Specification Chart
