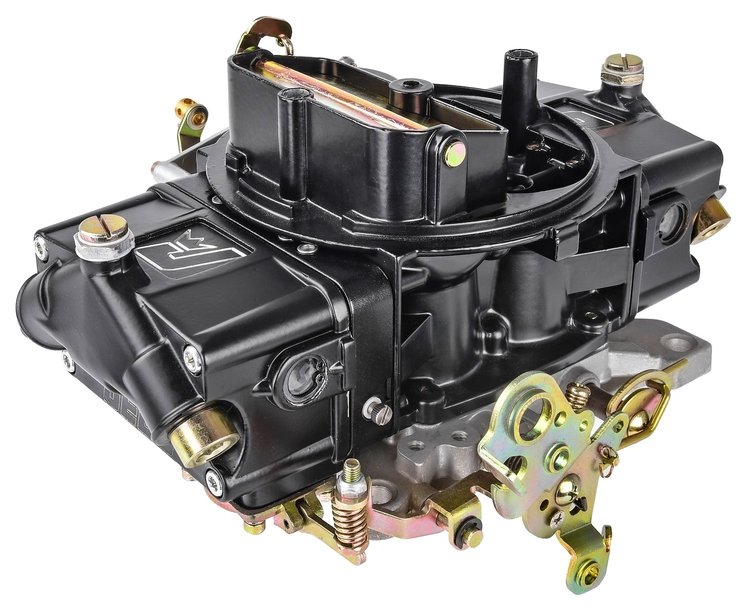

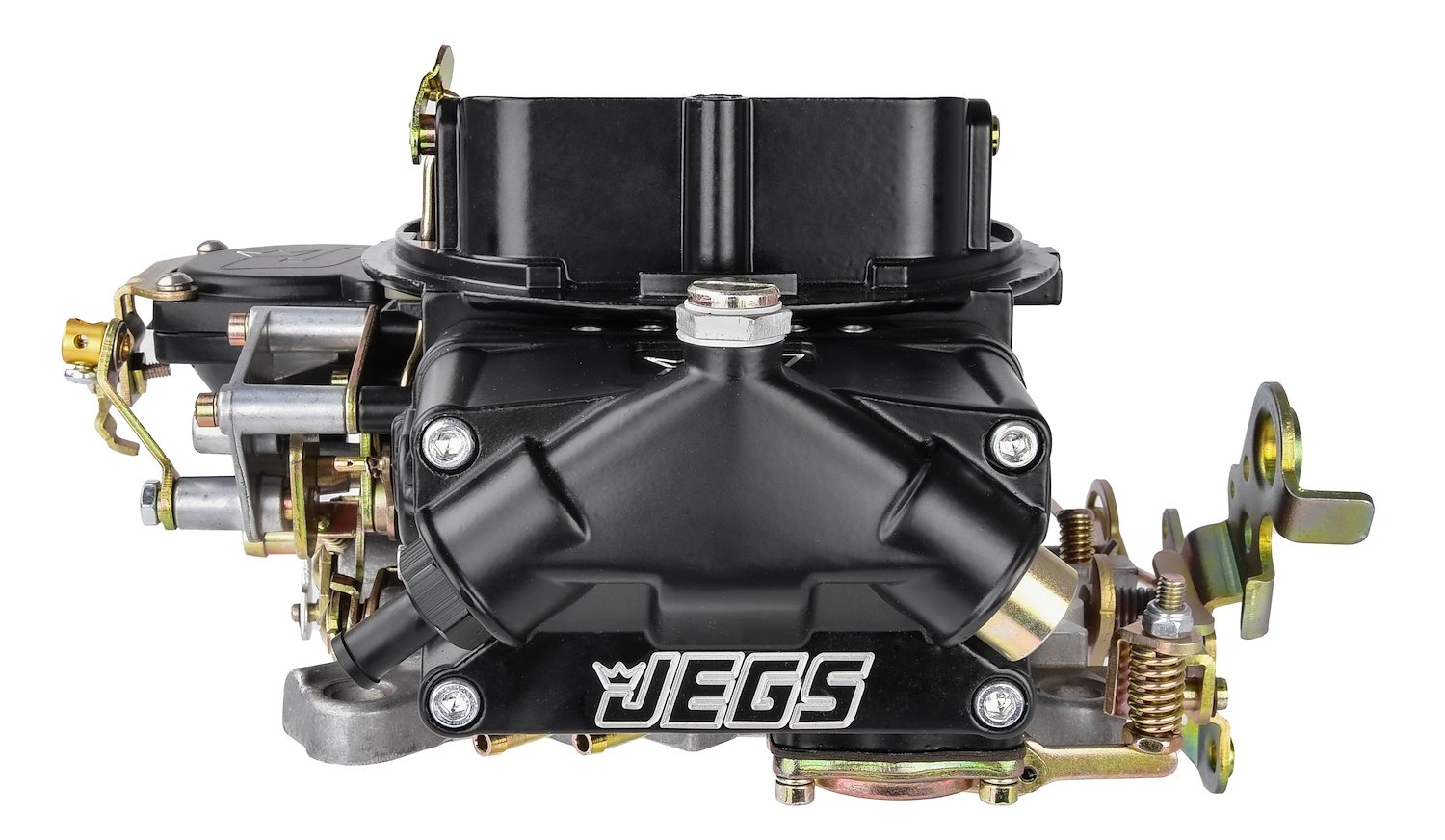

JEGS 555-16710 600 CFM Street Carburetor with Manual Choke

The JEGS 555-16710 600 CFM 4-Barrel carburetor is an ideal upgrade for your street vehicle's stock or mildly built engine. The durable fuel-safe matte black powder-coated finish will stand out in your engine bay while protecting the aluminum from corrosion.

JEGS 555-16710 600 CFM Street Carburetor with Manual Choke Features:

This unit offers several features that are superior to other carburetors in the same price range.

• Etched JEGS Logo on each float bowl
• Comes pre-tuned and ready to run out of the box. Some fine-tuning may be necessary depending on your engine setup
• Manual Choke
• Float bowls with dual feed connections that allow you to plumb your fuel lines on either the left/driver or right/passenger sides
• The carburetor body and fuel bowl's come in a matte black powder-coated finish that provides excellent wear protection
• Linkage and bracketry come in a classic gold dichromate finish that provides superior corrosion resistance
• Brass center-hung floats
• Glass float level sites incorporated into each float bowl on left/driver and right/passenger sides allow for easy visibility when adjusting fuel levels
• Adjustable air bleeds in the body and metering block
• Power valve blow-out protection
• Uses standard 4160 components for easy rebuild

JEGS 555-16710 600 CFM Street Carburetor with Manual Choke Includes:

• (1) Base gasket
• (1) Air filter gasket
• (3) Vacuum plugs
• (2) Vent tubes
• (1) Installation Instructions

JEGS 555-16710 600 CFM Street Carburetor with Manual Choke Specifications:

• Main jets: #65 (0.065 in. Diameter)
• Rear metering plate: #63 jet equivalent (0.0625 in. Diameter)
• Power valve: 6.5 Hg (Inches of mercury)
• Accelerator pump: 30cc
• Needle and seats: High-flow 110
• Dual feed fuel bowl inlets are threaded on the right/passenger and left/driver sides to allow your choice of fuel line plumbing
• Fuel line inlet thread sizes:
  • Carburetor body to fuel line: 9/16 in. -24 thread with 3/8 in. hose barb
• Dual-feed fuel inlet center-to-center spacing: 8 21/32 in.

Note: Keep track of your adjustments with this downloadable chart below.

Carburetor Specification Chart
