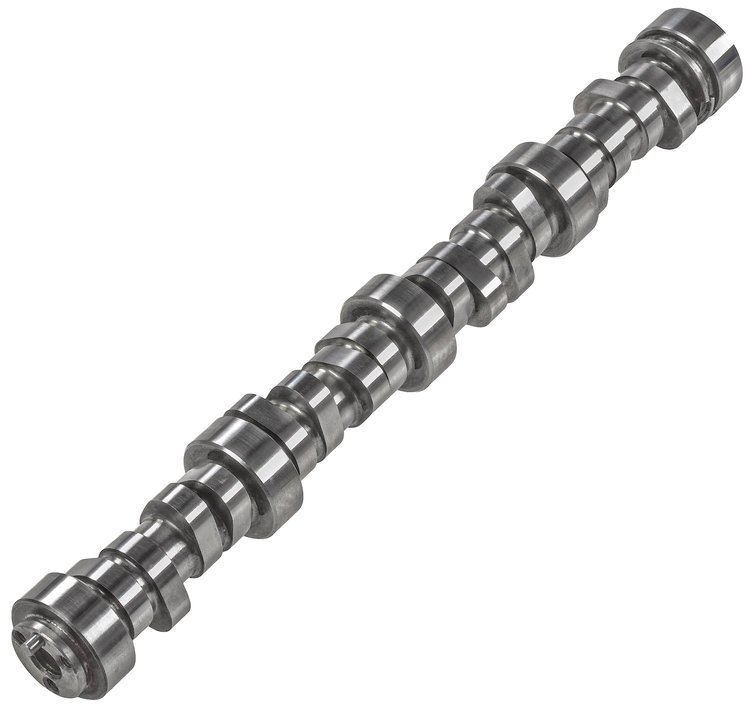

Hydraulic Roller Camshaft for 1997-2015 GM LS Gen III/IV w/3-Bolt Timing Sprocket [Sloppy Stage 2]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-200582

Hydraulic Roller Camshaft for 1997-2015 GM LS Gen III/IV w/3-Bolt Timing Sprocket [Sloppy Stage 2]

$32199$349.99You Save$28.00
7 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

High-Performance Hydraulic Roller Lifter Set for 1987-2002 Small Block Chevy & 1997-2017 GM Gen III/IV LS Engines

JEGS

High-Performance Hydraulic Roller Lifter Set for 1987-2002 Small Block Chevy & 1997-2017 GM Gen III/IV LS Engines

Part Number : 555-20760
$51999$549.99
You Save$30.00
Precision Cam Degree Wheel Kit [11 in.]

JEGS

Precision Cam Degree Wheel Kit [11 in.]

Part Number : 555-81621
$13499$161.99
You Save$27.00
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Camshaft Installation/Removal Tool Fits GM LS-Series Engines

JEGS

Camshaft Installation/Removal Tool Fits GM LS-Series Engines

Part Number : 555-80592
$2599$28.99
You Save$3.00

GM LS Series
Hydraulic Roller Camshaft
  • Fits 1997-2015 GM LS Gen III/IV Engines w/Three-Bolt Cam
  • Lift: 0.585 in. Intake/0.585 in. Exhaust
  • Advertised Duration: 283 Degrees/286 Degrees
  • Lobe Separation: 112 Degrees
  • RPM Range: 2500-6500

    JEGS 555-200582 Hydraulic Roller Camshaft Notes:

    • Duration @ 0.050 in.: 228 Degrees/230 Degrees
    • Roller lifters are available separately and are not included with this camshaft
    • Valve Lift when using 1.7:1 rocker arm ratio

    Camshaft Specifications

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Performance Roller Cams for Small Block Ford & GM LS Engines

      JEGS Hydraulic roller cams are designed for 1989-1995 Small Block Ford 5.0L, 1987-2002 GM Small Block Chevy, and Select 1997-2015 GM LS-Series (Gen III/IV) engines with 3-bolt cam gear sprocket. These cams work with the OEM Hydraulic Roller Tappets & Retainers. Available as camshaft only (roller tappets not included) and kits including roller tappets and guides.

    Part TypeCamshaft
    Product LineJEGS Hydraulic Roller Cams
    BrandJEGS
    Package Height2.5
    Package Width2.7
    Package Length23.7
    Weight9.7 PG
    Part CategoryPerformance Parts
    UsageStreet/Strip
    Exh. Duration @ .050 In. (Deg)230
    Camshaft Gear Attachment3-bolt
    Exh. Duration Advertised (Deg)286
    Int. Centerline (Deg)108
    Engine Make/SizeChevy Small Block LS Series
    Int. Duration @ .050 In. (Deg)228
    Exhaust Valve Lift0.585 in (14.859 mm)
    Exh. Centerline (Deg)116
    Intake Valve Lift0.585 in (14.859 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)283
    Lobe Separation (Deg)112
    Rpm Range2500-6500
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Valve Springs RequiredYes
    Package Qty1
    Package TypeEA
