Small Block Chevy
    Billet Timing Set
  • Bronze Thrust Washer
  • 1955-1992 Small Block Chevy 265-400
  • Except Factory Hydraulic Roller Cam

Reduce friction and protect against block wear

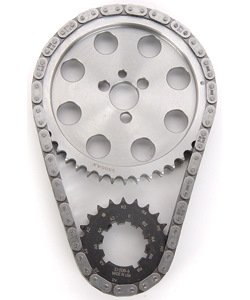

JEGS Billet Timing Chain Sets are available with Torrington roller thrust bearings or bronze thrust washers. These billet steel timing chain sets feature 9-keyway crank gears for precise adjustability and heat-treated, seamless roller chains with a 0.250" diameter roller. The cam and crank sprockets are machined from 1144 billet steel. Crank sprockets are coated in black oxide with laser-etched timing marks.

Show More

Features:

  • 9-Keyway Crank
  • Seamless Roller Chains
  • 0.250" Diameter Roller
  • Billet Steel Sprockets
  • Black Oxide Crank Sprockets
  • Laser-Etched Timing Marks
Part TypeTiming Chain and Gear Set
Product LineJEGS Billet Timing Chain Sets
BrandJEGS
Package Height1.7
Package Width6.6
Package Length9.9
Weight2.99 PG
Part CategoryPerformance Parts
Thrust Bearing IncludedNo
Crank Sprocket MaterialBillet steel
Camshaft Gear Attachment3-bolt
QuantitySold as a set
Cam Sprocket MaterialBillet steel
Bolts/Studs IncludedNo
Engine Make/SizeChevy Small Block (265-400)
Gaskets IncludedNo
Offset Bushings IncludedNo
Timing Chain StyleDouble roller
Maximum Advance/Retard At Crankshaft8 degree
Maximum Advance/Retard At Camshaft4 degree
Part FitmentSemi Universal
Package Qty1
Package TypeEA
