Made in USA
Billet Timing Set Bronze Thrust Washer
InfoVehicle Info Needed
JEGSPART NUMBER: 555-20421

Billet Timing Set Bronze Thrust Washer

$11999$131.99You Save$12.00
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Camshaft Lock Plate and Bolts for Small & Big Block Chevy Engines

JEGS

Camshaft Lock Plate and Bolts for Small & Big Block Chevy Engines

Part Number : 555-20305
$399$4.99
You Save$1.00
Aluminum Cam Button 1965-95 Big Block Chevy 396-454

JEGS

Aluminum Cam Button 1965-95 Big Block Chevy 396-454

Part Number : 555-20392
$999$10.99
You Save$1.00
Roller Cam Button 1965-95 Big Block Chevy 396-454

JEGS

Roller Cam Button 1965-95 Big Block Chevy 396-454

Part Number : 555-20397
$1999$21.99
You Save$2.00
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00

Big Block Chevy

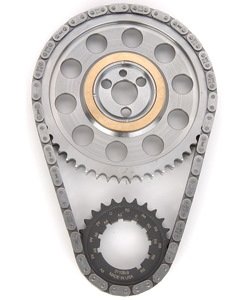

    Billet Timing Set
  • Bronze Thrust Washer
  • 1968-1990 Big Block Chevy 396-454
  • Except Factory Hydraulic Roller Cam

Reduce friction and protect against block wear

JEGS Billet Timing Chain Sets are available with Torrington roller thrust bearings or bronze thrust washers. These billet steel timing chain sets feature 9-keyway crank gears for precise adjustability and heat-treated, seamless roller chains with a 0.250" diameter roller. The cam and crank sprockets are machined from 1144 billet steel. Crank sprockets are coated in black oxide with laser-etched timing marks.

Show More

Features:

  • 9-Keyway Crank
  • Seamless Roller Chains
  • 0.250" Diameter Roller
  • Billet Steel Sprockets
  • Black Oxide Crank Sprockets
  • Laser-Etched Timing Marks
Part TypeTiming Chain and Gear Set
Product LineJEGS Billet Timing Chain Sets
BrandJEGS
Package Height1.9
Package Width6.5
Package Length9.8
Weight3.7 PG
Part CategoryPerformance Parts
Thrust Bearing IncludedNo
Crank Sprocket MaterialBillet steel
Camshaft Gear Attachment3-bolt
QuantitySold as a set
Cam Sprocket MaterialBillet steel
Bolts/Studs IncludedNo
Engine Make/SizeChevy Big Block (396-454)
Gaskets IncludedNo
Offset Bushings IncludedNo
Timing Chain StyleDouble roller
Maximum Advance/Retard At Crankshaft8 degree
Maximum Advance/Retard At Camshaft4 degree
Part FitmentSemi Universal
Package Qty1
Package TypeEA
